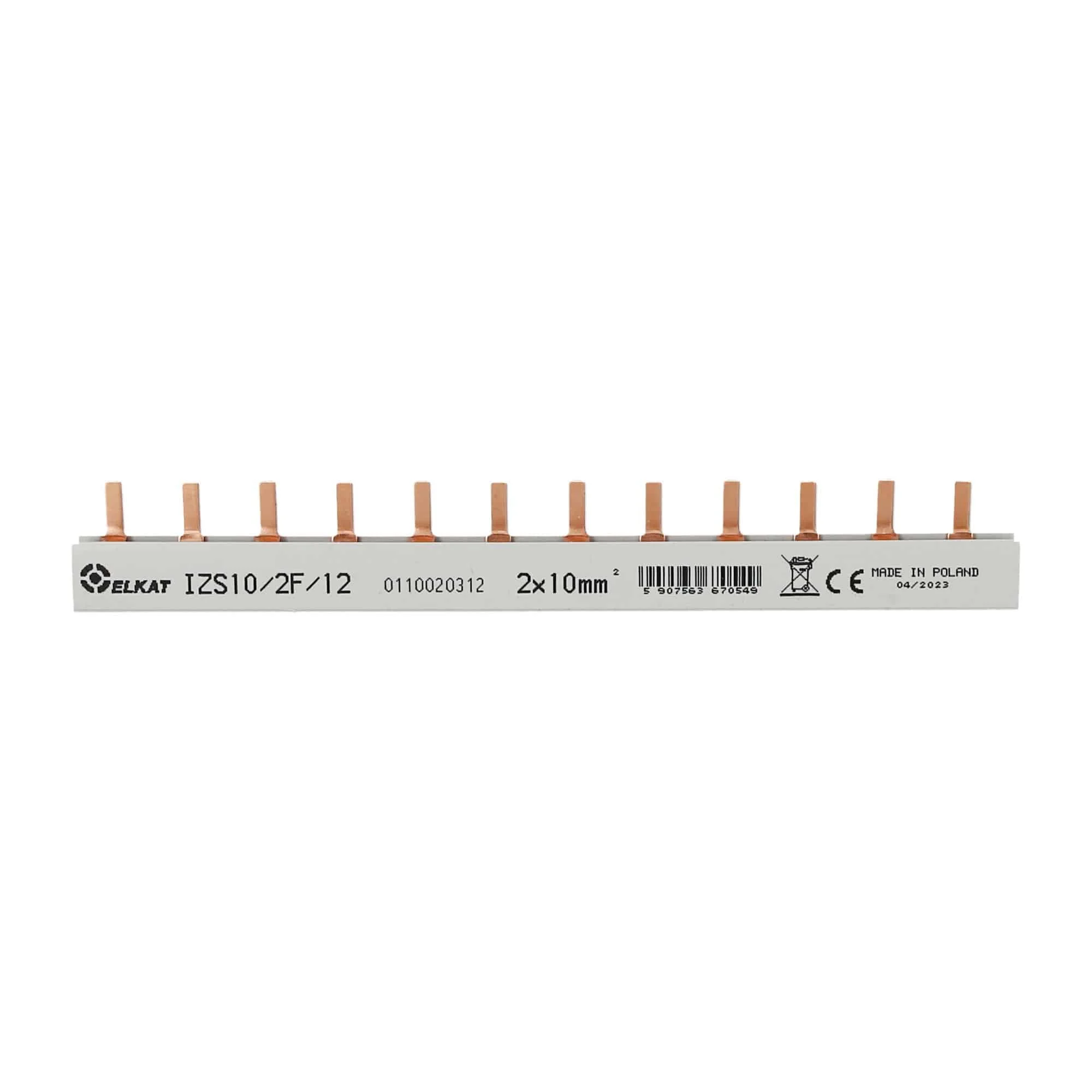

IZS10/2F

2-Phase, 63A insulated comb busbar with pins

- 2 Phase
- 10mm2 cross-section
- 17,8 mm module dimension
- Pure 99,9% ETP Copper code CW004A
- Isolation - PVC
- Color of the Isolation material - RAL 7035 Grey
- Nominal voltage (Ue) 240/415 [V]
- Rated insulation voltage (Ui) 500 [V]
- max. current carrying capacity (Ie) 63 [A]
- Withstand surge voltage. (Uimp) 4 [kV]
- Norms Conformity IEC 60947-1, IEC 60947-7-1
- Customisable by Length
- ZS-10/2F Endcap Accessory
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below

- Catalogue Number - 0210020312
- Length - 12 modules - 215 [mm]
- Packed by 20 - 1,70 [Kg]
- Packed by 240 - 20,40 [Kg]
- Catalogue Number - 0210020354
- Length - 54 modules - 1000 [mm]
- Packed by 20 - 6,80 [Kg]
- Catalogue Number - 0210020356
- Length - 54 modules - 1010 [mm]
- Packed by 20 - 7,30 [Kg]

ZS-10/2F endcap accessory

SR2-10/2F

2-Phase, 63A insulated comb busbar with pins

- 2 Phase
- 10mm2 cross-section
- 8,9 mm module dimension
- Pure 99,9% ETP Copper code CW004A
- Isolation - PC-ABS
- Color of the Isolation material - RAL 7035 Grey
- Nominal voltage (Ue) 240/415 [V]
- Rated insulation voltage (Ui) 500 [V]
- max. current carrying capacity (Ie) 63 [A]
- Withstand surge voltage. (Uimp) 4 [kV]
- Norm IEC 60947-1, IEC 60947-7-1
- Customizable by length
- adjustable print
- ZS-10/2F Endcap Accessory
- Catalogue number - 15
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

- Catalogue Number - 0210021612
- Length - 24 modules - 215 [mm]
- Packed by 20 - 1,50 [Kg]
- Packed by 240 - 18 [Kg]
- Catalogue Number - 0210021654
- Length - 108 modules - 1000 [mm]
- Packed by 20 - 6,90 [Kg]

ZS-10/2F Endcap Accessory

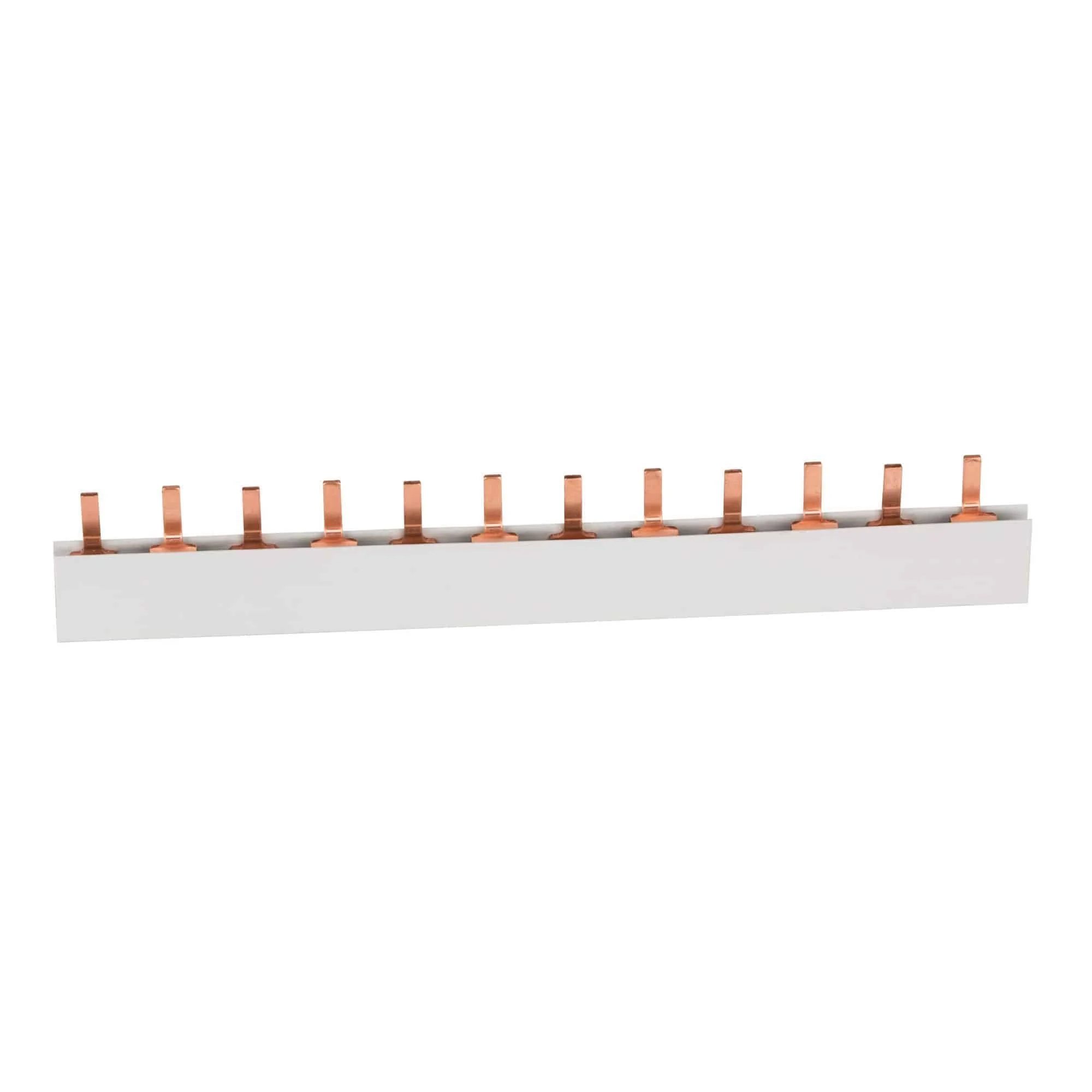

2-Phase, 100A insulated comb busbar with pins

- 2 Phase
- 16 mm2 cross-section
- 17,8 mm module dimension
- Pure 99,9% ETP Copper code CW004A
- Isolation - PVC
- Color of the Isolation material - RAL 7035 Grey
- Nominal voltage (Ue) 240/415 [V]
- Rated insulation voltage (Ui) 500 [V]
- max. current carrying capacity (Ie) 100 [A]
- Withstand surge voltage. (Uimp) 4 [kV]
- Norm compliance IEC 60947-1, IEC 60947-7-1
- The Bus Bar is Custimzable by length
- Standard lngth models are 9, 12, 54, 57 modules
- We provide suitable endcaps
- Custom prints
- ZS-16/2F Endcap Accessories
- Accesory Catalogue Number - 06
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below

- Catalogue Number - 0216020312
- Length - 12 modules - 215 [mm]
- Packed by 20 - 1,80 [Kg]
- Packed by 240 - 21,60 [Kg]
- Catalogue Number - 0216020354
- Length - 54 modules - 1000 [mm]
- Packed by 20 - 10,20 [Kg]
- Catalogue Number - 0216020357
- Length - 57 modules - 1010 [mm]
- Packed by 20 - 10,90 [Kg]

ZS-16/2F Endcap Accessory

2-Phase, 100A insulated comb busbar with pins

- 2 Phase
- 16 mm2 cross-section
- 8,9 mm module dimension
- Pure 99,9% ETP Copper code CW004A
- Isolation - PVC
- Color of the Isolation material - RAL 7035 Grey
- Nominal voltage (Ue) 240/415 [V]
- Rated insulation voltage (Ui) 500 [V]
- max. current carrying capacity (Ie) 100 [A]
- Withstand surge voltage. (Uimp) 4 [kV]
- Norm compliance IEC 60947-1, IEC 60947-7-1
- The Bus Bar is Custimzable by length
- Standard lngth models are 24 and 108 modules
- We provide suitable endcaps
- Custom Prints
- ZS-16/2F Endcap Accessory
- Accessory Catalogue Number - 07
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below.

- Catalogue Number - 0216021612
- Length - 12 modules - 215 [mm]
- Packed by 20 - 2,00 [Kg]
- Packed by 240 - 24,00 [Kg]
- Catalogue Number - 0216021654
- Length - 108 modules - 1000 [mm]
- Packed by 20 - 9,16 [Kg]

ZS-16/2F Endcap Accessory
