IZS10/3F
3-phase, 63A insulated comb busbar with pins
-
3 Phase
10mm2 cross-section
17,8 mm module dimension
-
Pure 99,9% ETP Copper code CW004A
Isolation - PVC
Color of the Isolation material - RAL 7035 Grey
-
Nominal voltage (Ue) 240/415 [V]
Rated insulation voltage (Ui) 500 [V]
max. current carrying capacity (Ie) 63 [A]
Withstand surge voltage. (Uimp) 4 [kV]
-
Standard Lengths For the bus bar are 12,54 or 57 modules
The lenght diameter is also discussable while adjusting to your demand
We provide suitable endcaps
-
ZS-10/3F Endcap Accessories
-
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.
Standard Variants
-
Catalogue Number - 0210030312
Length - 12 modules - 215 [mm]
Packed by 20 - 1,87 [Kg]
Packed by 240 - 22,44 [Kg]
-
Catalogue Number - 0210030354
Length - 54 modules - 1000 [mm]
Packed by 20 - 9,40 [Kg]
-
Catalogue Number - 0210030354
Length - 54 modules - 1025 [mm]
Packed by 20 - 9,97 [Kg]
ZS-10/3F endcap accessory
IZS10/3F/C
3-phase, 63A insulated comb busbar with pins, enclosed insulation
-
3 Phase
10mm2 cross-section
17,8 mm module dimension
-
Pure 99,9% ETP Copper code CW004A
Isolation - PC-ABS
Color of the Isolation material - RAL 7035 Grey
-
Nominal voltage (Ue) 240/415 [V]
Rated insulation voltage (Ui) 500 [V]
max. current carrying capacity (Ie) 63 [A]
Withstand surge voltage. (Uimp) 4 [kV]
-
Standard Lengths For the bus bar are 6, 9, 12, 18 modules
-
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.
Standard Variants
-
Catalogue Number - 0210031506
Length - 6 modules - 110 [mm]
Packed by 20 - 0,800 [Kg]
Packed by 240 - 9,63 [Kg]
-
Catalogue Number - 0210031509
Length - 9 modules - 160 [mm]
Packed by 20 - 1,30 [Kg]
Packed by 240 - 15,62 [Kg]
-
Catalogue Number - 0210031512
Length - 12 modules - 215 [mm]
Packed by 20 - 1,76 [Kg]
Packed by 240 - 21,12 [Kg]
-
Catalogue Number - 0210031518
Length - 18 modules - 323 [mm]
Packed by 20 - 2,62 [Kg]
Packed by 120 - 15,72 [Kg]
IZS10/3F/D
3-phase, 63A insulated comb busbar with pin, divided insulation
-
3 Phase
16 mm2 cross-section
27 mm module dimension
-
Pure 99,9% ETP Copper code CW004A
Isolation - PVC
Color of the Isolation material - RAL 7035 Grey
-
Nominal voltage (Ue) 240/415 [V]
Rated insulation voltage (Ui) 500 [V]
max. current carrying capacity (Ie) 100 [A]
Withstand surge voltage. (Uimp) 4 [kV]
-
The Bus Bar is Custimzable by length
Standard lngth models are 12 and 36 modules
We provide suitable endcaps
The insulators are divided by phase
-
ZS-16 Endcap Accessory
-
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.
Standard Variants
-
Catalogue Number - 0216030812
Length - 12 modules - 323 [mm]
Packed by 20 - 4,20 [Kg]
Packed by 120 - 25,20 [Kg]
-
Catalogue Number - 0216030836
Length - 36 modules - 1000 [mm]
Packed by 20 - 14,20 [Kg]
ZS-16/3F Endcap Accessory

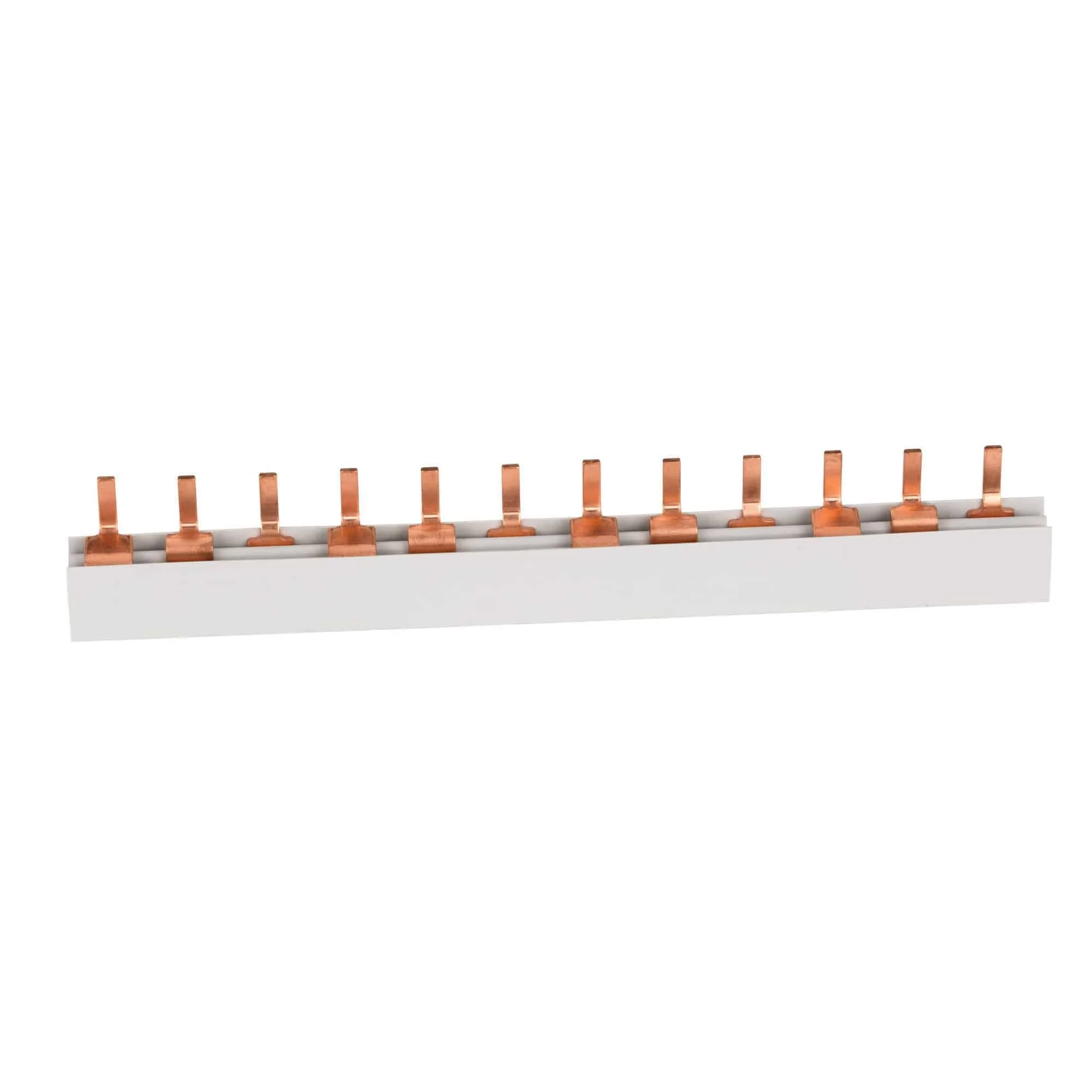

IZS16/3F
3-phase, 100A comb busbar with pins.
-
3 Phase
16 mm2 cross-section
17,8 mm module dimension
-
Pure 99,9% ETP Copper code CW004A
Isolation - PVC
Color of the Isolation material - RAL 7035 Grey
-
Nominal voltage (Ue) 240/415 [V]
Rated insulation voltage (Ui) 500 [V]
max. current carrying capacity (Ie) 100 [A]
Withstand surge voltage. (Uimp) 4 [kV]
-
The Bus Bar is Custimzable by length
Standard lngth models are 9, 12, 54, 57 modules
We provide suitable endcaps
-
ZS-16/3F Endcap Accessories
-
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.
Standard Variants
-
Catalogue Number - 0216030309
Length - 9 modules - 160 [mm]
Packed by 20 - 2,05 [Kg]
Packed by 240 - 24,60 [Kg]
-
Catalogue Number - 0216030312
Length - 12 modules - 215 [mm]
Packed by 20 - 2,73 [Kg]
Packed by 180 - 24,57 [Kg]
-
Catalogue Number - 0216030354
Length - 54 modules - 1000 [mm]
Packed by 20 - 13,50 [Kg]
-
Catalogue Number - 0216030357
Length - 57 modules - 1025 [mm]
Packed by 20 - 13,70 [Kg]
ZS-16/3F Endcap Accessory
IZS16/3F/D
3-phase, 100A comb busbar with pins.
-
3 Phase
16 mm2 cross-section
17,8 mm module dimension
-
Pure 99,9% ETP Copper code CW004A
Isolation - PVC
Color of the Isolation material - RAL 7035 Grey
-
Nominal voltage (Ue) 240/415 [V]
Rated insulation voltage (Ui) 500 [V]
max. current carrying capacity (Ie) 100 [A]
Withstand surge voltage. (Uimp) 4 [kV]
-
The Bus Bar is Custimzable by length
Standard lngth models are 9, 12, 54, 57 modules
We provide suitable endcaps
-
ZS-16/3F Endcap Accessories
-
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.
Standard Variants
-
Catalogue Number - 0216030309
Length - 9 modules - 160 [mm]
Packed by 20 - 2,05 [Kg]
Packed by 240 - 24,60 [Kg]
-
Catalogue Number - 0216030312
Length - 12 modules - 215 [mm]
Packed by 20 - 2,73 [Kg]
Packed by 180 - 24,57 [Kg]
-
Catalogue Number - 0216030354
Length - 54 modules - 1000 [mm]
Packed by 20 - 13,50 [Kg]
-
Catalogue Number - 0216030357
Length - 57 modules - 1025 [mm]
Packed by 20 - 13,70 [Kg]
ZS-16/3F Endcap Accessory

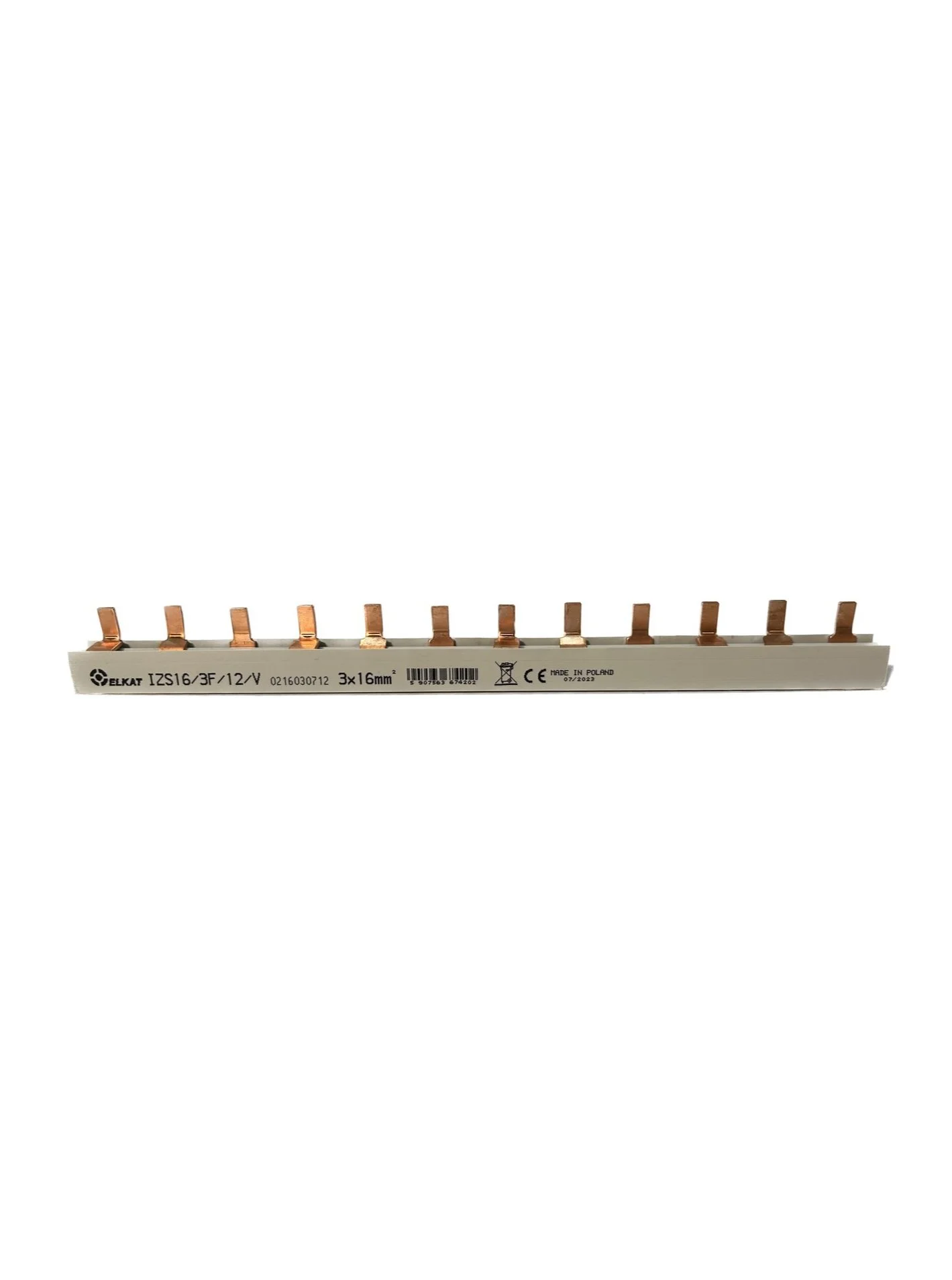

IZS16/3F/V
3-Phase, 100A insulated comb busbar with pins
-
3 Phase
16 mm2 cross-section
27 mm module dimension
-
Pure 99,9% ETP Copper code CW004A
Isolation - PVC
Color of the Isolation material - RAL 7035 Grey
-
Nominal voltage (Ue) 240/415 [V]
Rated insulation voltage (Ui) 500 [V]
max. current carrying capacity (Ie) 100 [A]
Withstand surge voltage. (Uimp) 4 [kV]
-
The Bus Bar is Custimzable by length
Standard lngth models are 12 and 36 modules
We provide suitable endcaps
-
ZS-16/3F Endcap Accessory
-
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.
Standard Variants
-
Catalogue Number - 0216030712
Length - 12 modules - 320 [mm]
Packed by 20 - 3,70 [Kg]
Packed by 120 - 22,20 [Kg]
-
Catalogue Number - 0216030736
Length - 36 modules - 1000 [mm]
Packed by 20 - 12,90 [Kg]
ZS-16/3F Endcap Accessory
