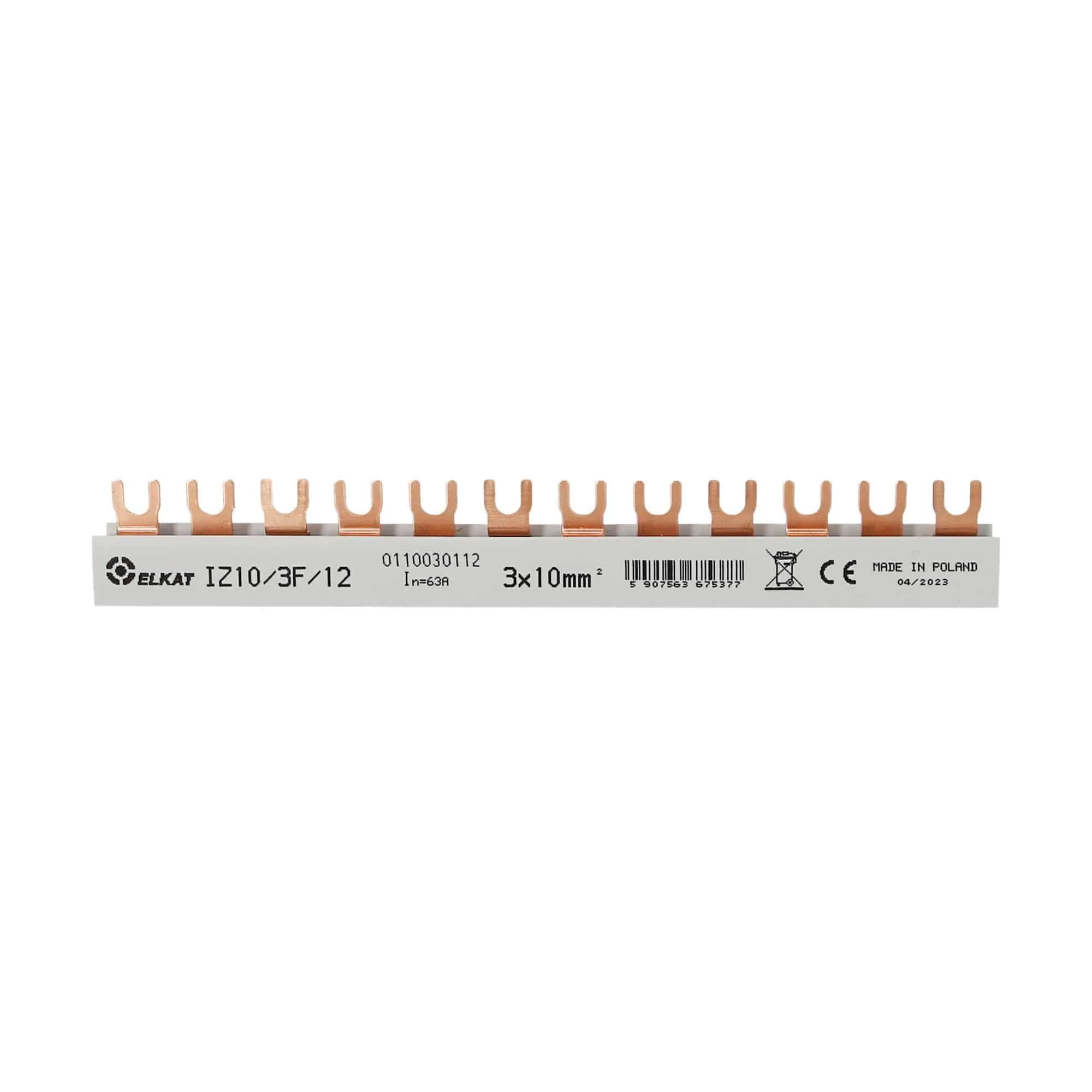

IZ10/3F

3-phase, 63A insulated comb busbar with forks

    • 3 Phase

    • 10mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The length diameter is discussable while adjusting to your demand

    • We provide suitable endcaps

    • Z-10/3F Endcap Accessories

    • accessory catalogue number - 01

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0110030109

    • Length - 9 modules - 160 [mm]

    • Packed by 20 - 1,60 [Kg]

    • Packed by 240 - 19,20 [Kg]

    • Catalogue Number - 0110030112

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,20 [Kg]

    • Packed by 240 - 26,40 [Kg]

    • Catalogue Number - 0110030118

    • Length - 18 modules - 320 [mm]

    • Packed by 20 - 3,51 [Kg]

    • Packed by 120 - 21,06 [Kg]

    • Catalogue Number - 0110030154

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 10,90 [Kg]

Z-10/3F endcap accessory

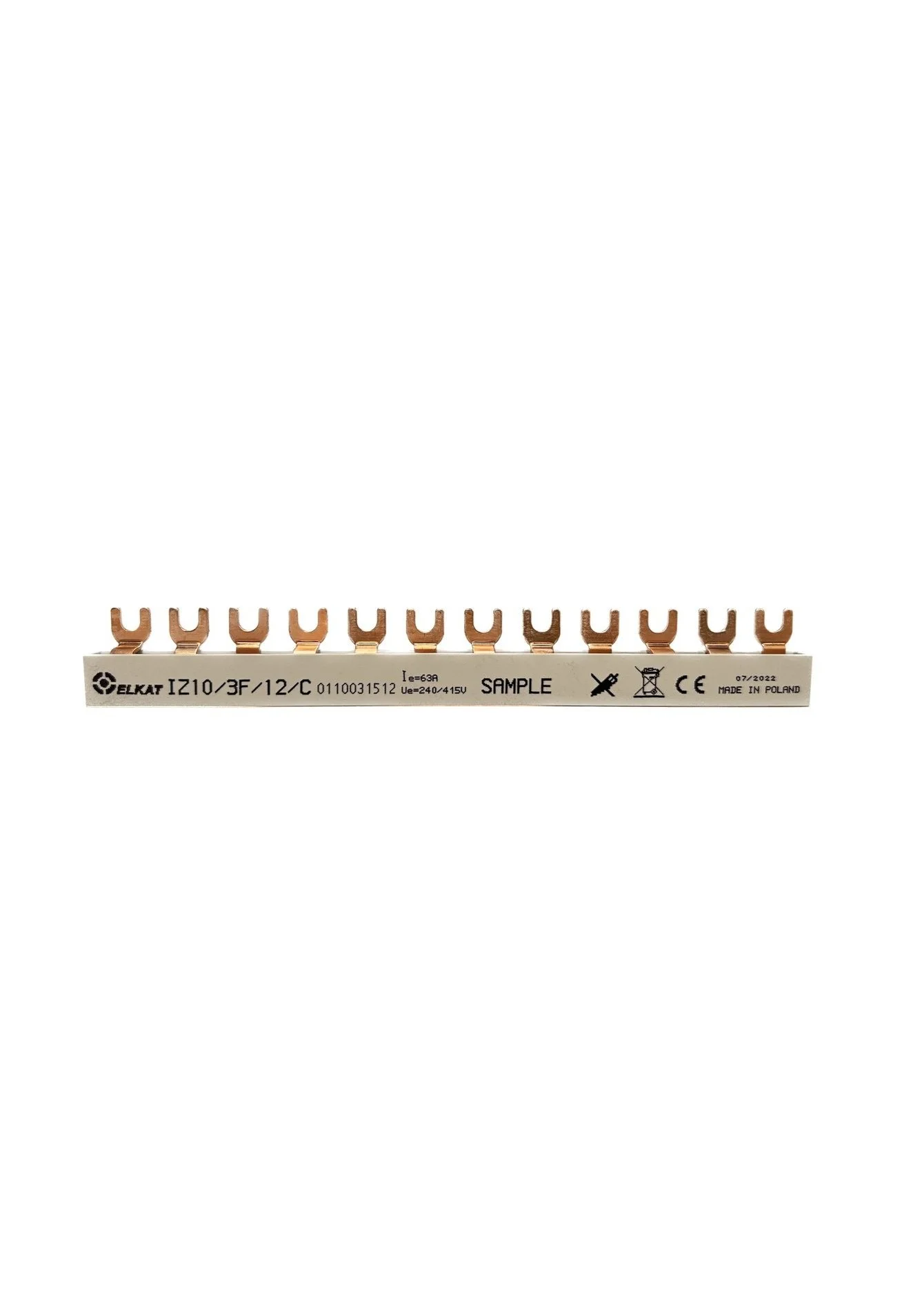

IZ10/3F/C

3-phase, 63A insulated comb busbar with forks, enclosed insulation.

    • 3 Phase

    • 10mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PC-ABS

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Standard Lengths For the bus bar are 6, 9, 12, 18 modules

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0110031506

    • Length - 6 modules - 110 [mm]

    • Packed by 20 - 0,860 [Kg]

    • Packed by 240 - 10,34 [Kg]

    • Catalogue Number - 0110031509

    • Length - 9 modules - 160 [mm]

    • Packed by 20 - 1,36 [Kg]

    • Packed by 240 - 16,32 [Kg]

    • Catalogue Number - 0110031512

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 1,86 [Kg]

    • Packed by 240 - 21,67 [Kg]

    • Catalogue Number - 0110031518

    • Length - 18 modules - 323 [mm]

    • Packed by 20 - 2,88 [Kg]

    • Packed by 120 - 17,28 [Kg]

IZ10/3F/D

3-phase, 63A insulated comb busbar with forks, divided by phase.

    • 3 Phase

    • 10mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The length diameter is discussable while adjusting to your demand

    • We provide suitable endcaps

    • The busbar is divided by phase

    • Z-10/1F Endcap Accessories

    • accessory catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0110030212

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,30 [Kg]

    • Packed by 240 - 27,60 [Kg]

    • Catalogue Number - 0110030254

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 12,30 [Kg]

Z-10/3F endcap accessory

IZ16/3F

3-phase, 100A insulated comb busbar with forks.

    • 3 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The Bus Bar is Custimzable by length

    • Standard lngth models are 9, 12, 54, 57 modules

    • We provide suitable endcaps

    • Z-16/3F Endcap Accessories

    • accessory CAtalogue number - 05

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116030109

    • Length - 9 modules - 160 [mm]

    • Packed by 20 - 2,06 [Kg]

    • Packed by 240 - 24,74 [Kg]

    • Catalogue Number - 0116030112

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,83 [Kg]

    • Packed by 240 - 33,96 [Kg]

    • Catalogue Number - 0116030118

    • Length - 18 modules - 320 [mm]

    • Packed by 20 - 4,80 [Kg]

    • Packed by 120 - 28,80 [Kg]

    • Catalogue Number - 0116030154

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 14,37 [Kg]

    • Catalogue Number - 0116030157

    • Length - 57 modules - 1025 [mm]

    • Packed by 20 - 15,05 [Kg]

Z-16/3F Endcap Accessory

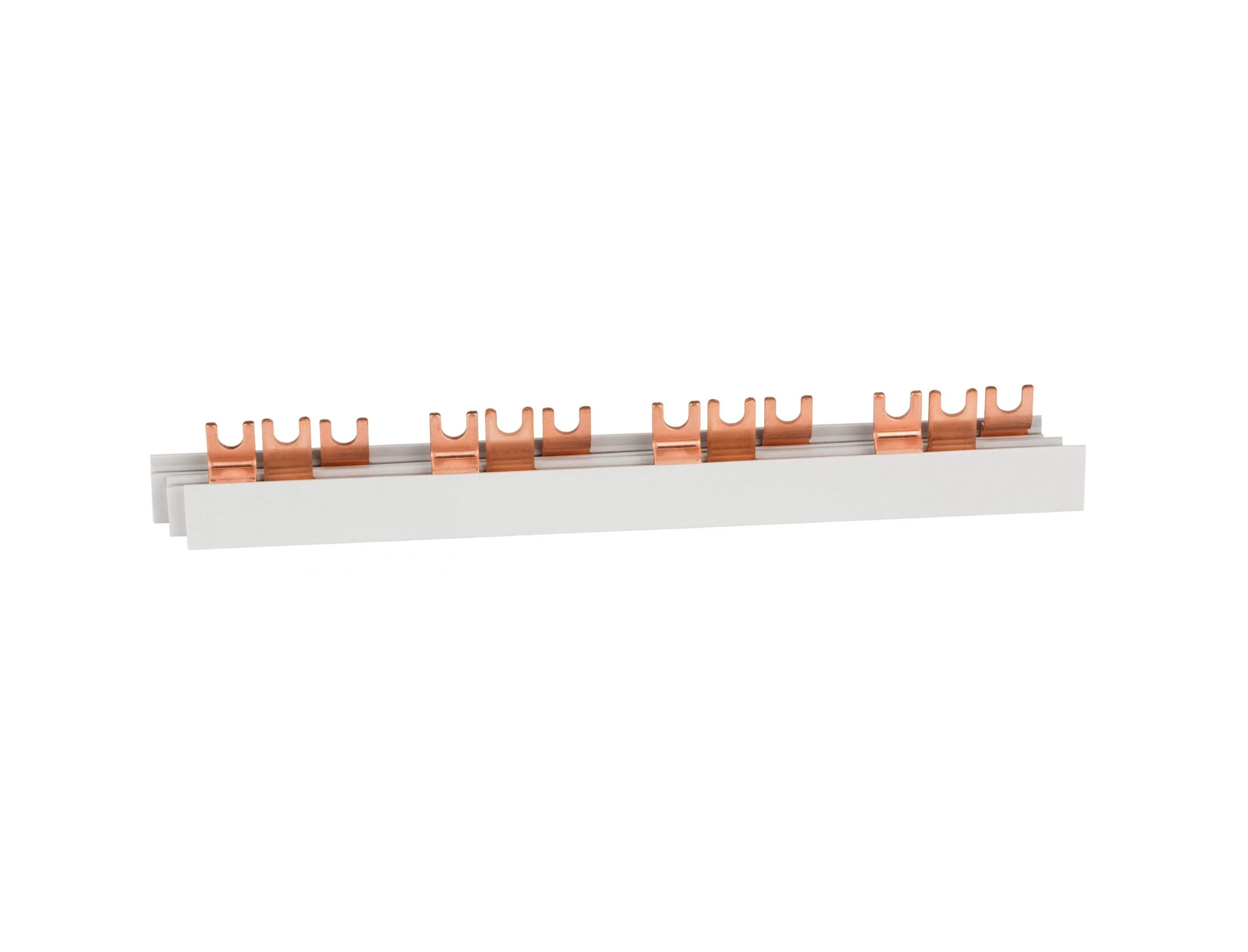

IZ16/3F/D

3-phase, 100A insulated comb busbar with forks, divided by phase.

    • 3 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The Bus Bar is Custimzable by length

    • The busbar is divided by phase

    • We provide suitable endcaps

    • Z-16/1F Endcap Accessories

    • accessory Catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116030212

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,80 [Kg]

    • Packed by 240 - 33,60 [Kg]

    • Catalogue Number - 0116030254

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 14,90 [Kg]

Z-16/1F Endcap Accessory

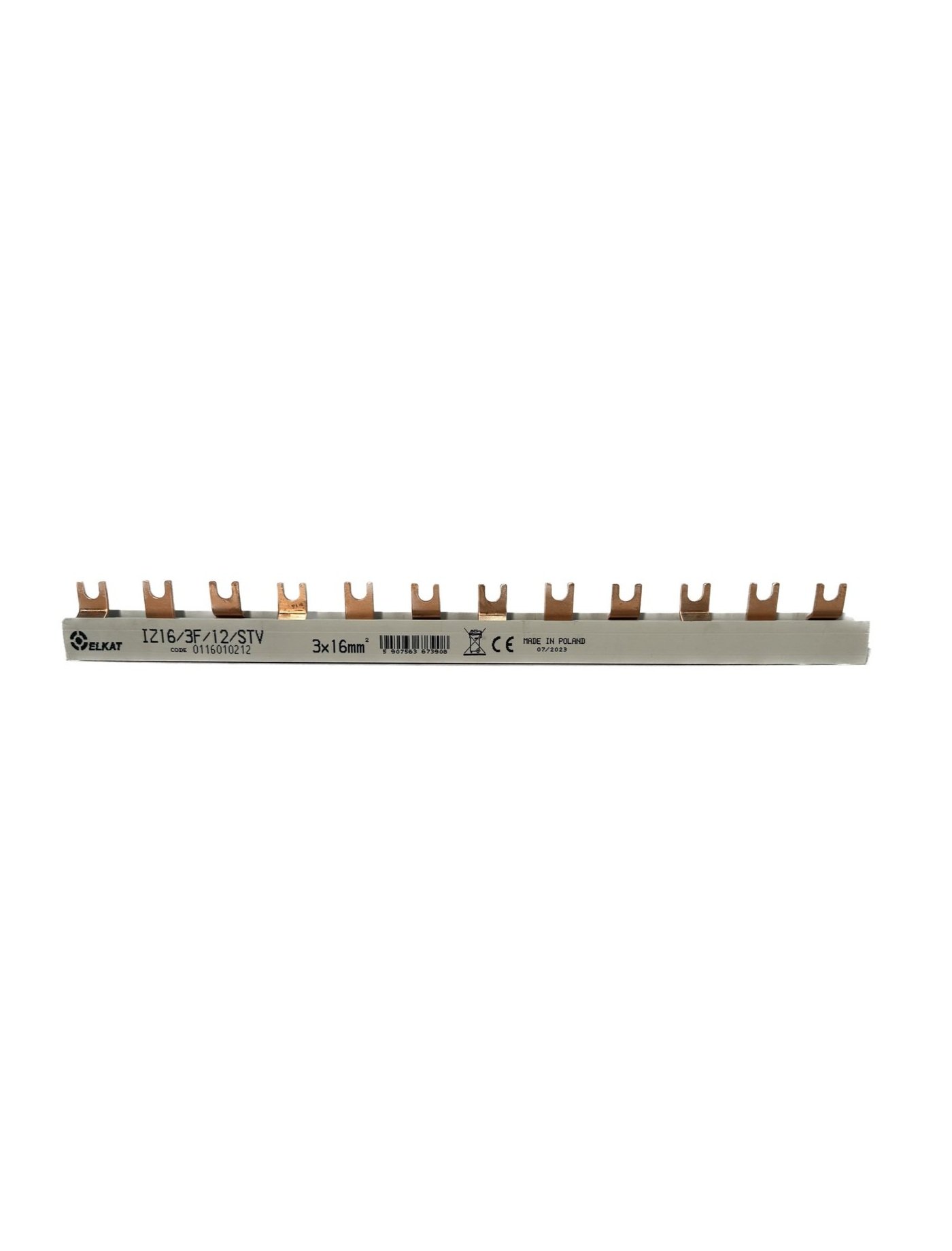

IZ16/3F/STV

3-phase, 100A insulated comb busbar with forks

    • 3 Phase

    • 16 mm2 cross-section

    • 27 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The Bus Bar is Custimzable by length

    • Standard lngth models are 12 and 36 modules

    • We provide suitable endcaps

    • Z-16/3F Endcap Accessory

    • Accessory catalogue number - 05

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116030512

    • Length - 12 modules - 323 [mm]

    • Packed by 20 - 3,90 [Kg]

    • Packed by 120 - 23,40 [Kg]

    • Catalogue Number - 0116030536

    • Length - 36 modules - 1000 [mm]

    • Packed by 20 - 12,85 [Kg]

Z-16/3F Endcap Accessory

IZ16/3F/STV/D

3-phase, 100A insulated comb busbar with forks, divided by phase

    • 3 Phase

    • 16 mm2 cross-section

    • 27 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The Bus Bar is Custimzable by length

    • Standard lngth models are 12 and 36 modules

    • We provide suitable endcaps

    • The insulators are divided by phase

    • Z-16/1F Endcap Accessory

    • Accessory catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116030612

    • Length - 12 modules - 320 [mm]

    • Packed by 20 - 4,20 [Kg]

    • Packed by 120 - 25,20 [Kg]

    • Catalogue Number - 0116030636

    • Length - 36 modules - 1000 [mm]

    • Packed by 20 - 14,22 [Kg]

Z-16/1F Endcap Accessory

IZM10/3F

3-phase, 63A insulated comb busbar with forks

    • 3 Phase

    • 10 mm2 cross-section

    • 15 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The Bus Bar is Custimzable by length

    • We provide suitable endcaps

    • Z-10/3F Endcap Accessory

    • Accessory catalogue number - 01

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0110031712

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,05 [Kg]

    • Packed by 240 - 24,60 [Kg]

    • Catalogue Number - 0110031754

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 9,65 [Kg]

Z-10/3F Endcap Accessory

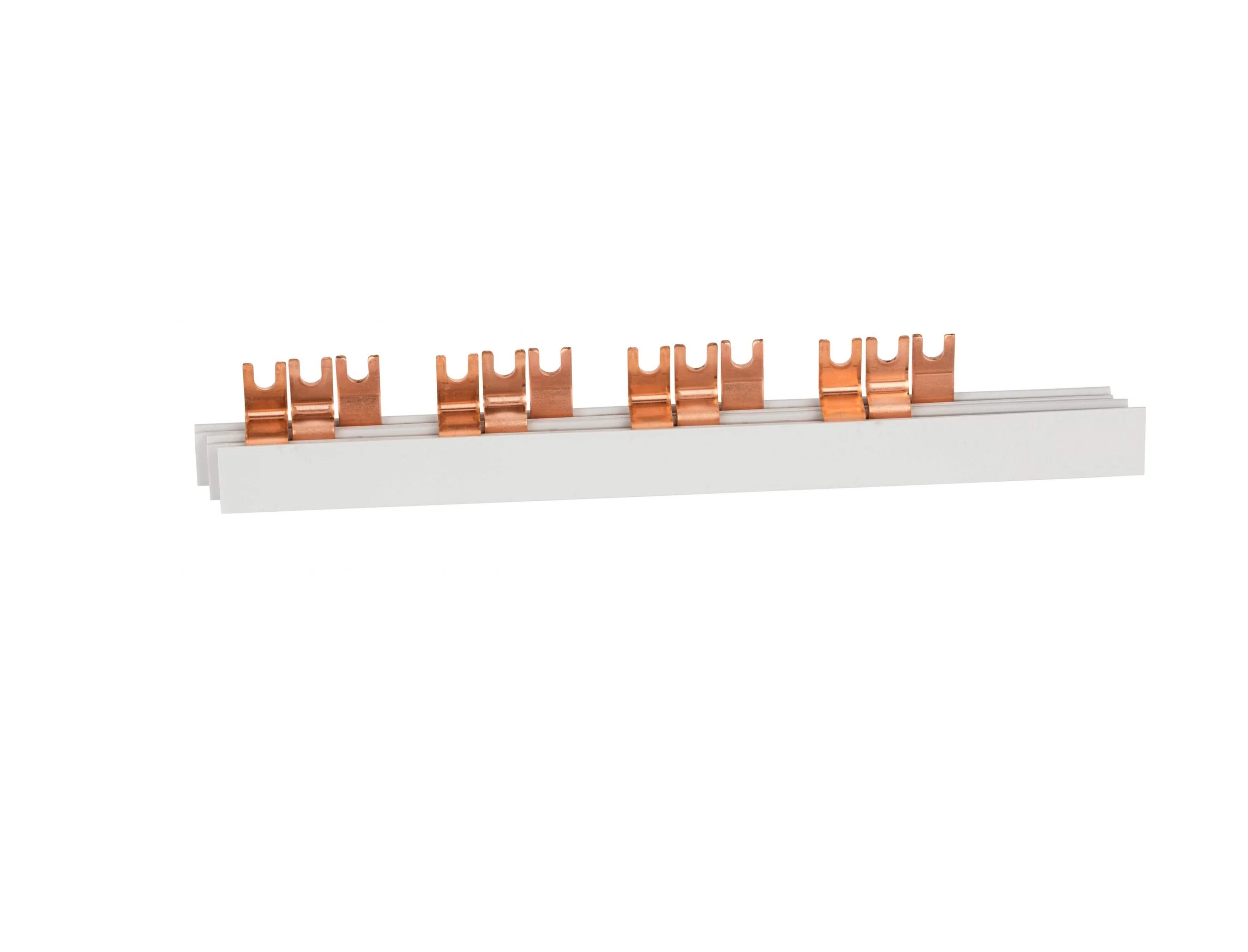

IZM10/3F/D

3-phase, 63A insulated comb busbar with forks, divided by phase

    • 3 Phase

    • 10 mm2 cross-section

    • 15 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The Bus Bar is Custimzable by length

    • We provide suitable endcaps

    • The Bus Bar is divided by phase

    • Z-10/1F Endcap Accessory

    • Accessory catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0110031812

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,20 [Kg]

    • Packed by 240 - 26,40 [Kg]

    • Catalogue Number - 0110031854

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 11,15 [Kg]

Z-10/1F Endcap Accessory

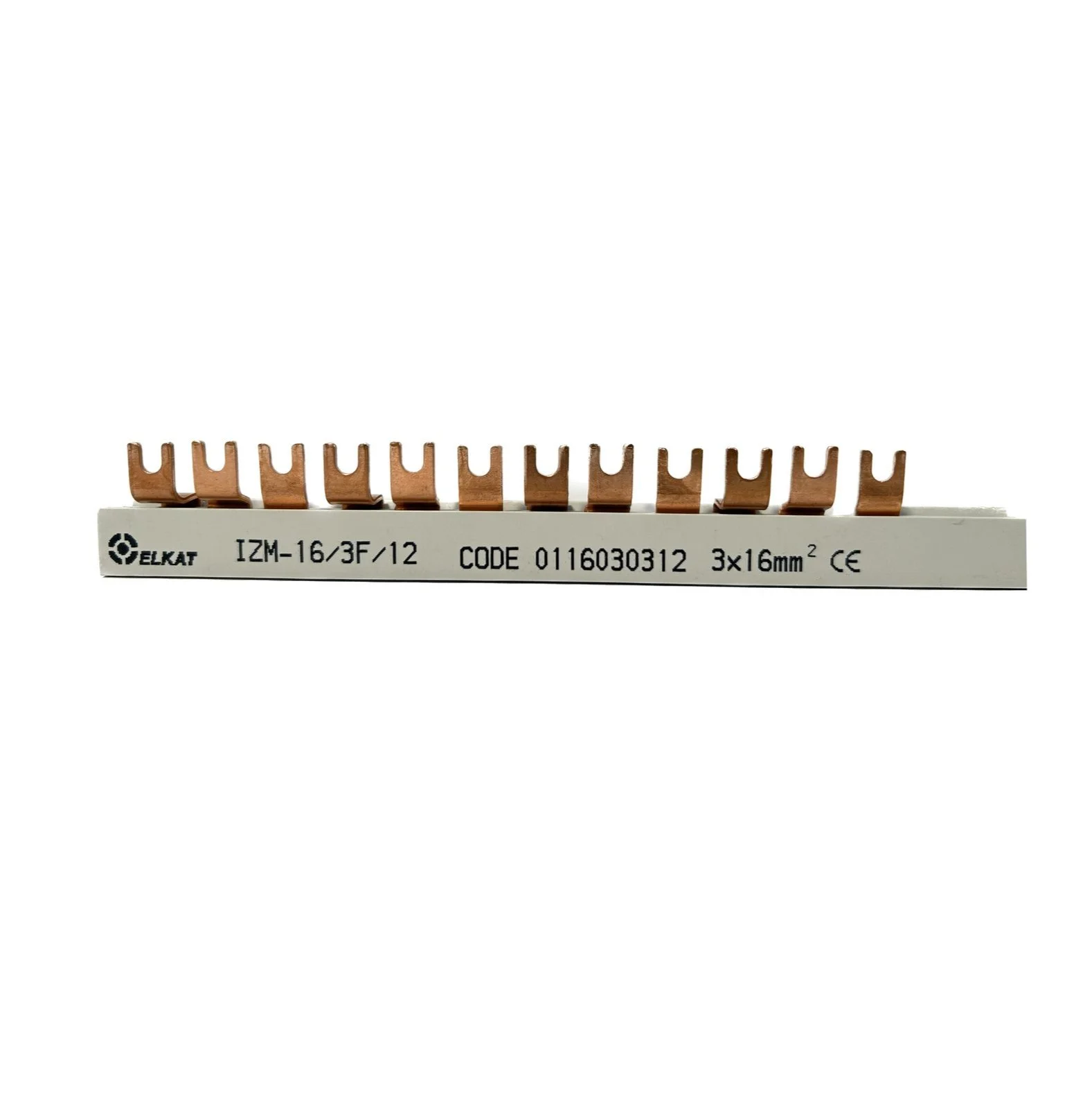

IZM16/3F

3-phase, 100A insulated comb busbar with forks

    • 3 Phase

    • 10 mm2 cross-section

    • 15 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The Bus Bar is Custimzable by length

    • We provide suitable endcaps

    • Z-1 6/3F Endcap Accessory

    • Accessory catalogue number - 05

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116031712

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,60 [Kg]

    • Packed by 180 - 23,40 [Kg]

    • Catalogue Number - 0116031760

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 9,65 [Kg]

Z-16/3F Endcap Accessory

IZM16/3F/D

3-phase, 100A insulated comb busbar with forks, divided by phase.

    • 3 Phase

    • 10 mm2 cross-section

    • 15 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • The Bus Bar is Custimzable by length

    • We provide suitable endcaps

    • The Bus Bar is divided by phase

    • Z-10/1F Endcap Accessory

    • Accessory catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually each time. Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0116031812

    • Length - 12 modules - 215 [mm]

    • Packed by 20 - 2,90 [Kg]

    • Packed by 180 - 26,10 [Kg]

    • Catalogue Number - 0116031860

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 15,28 [Kg]

Z-16/1F Endcap Accessory
