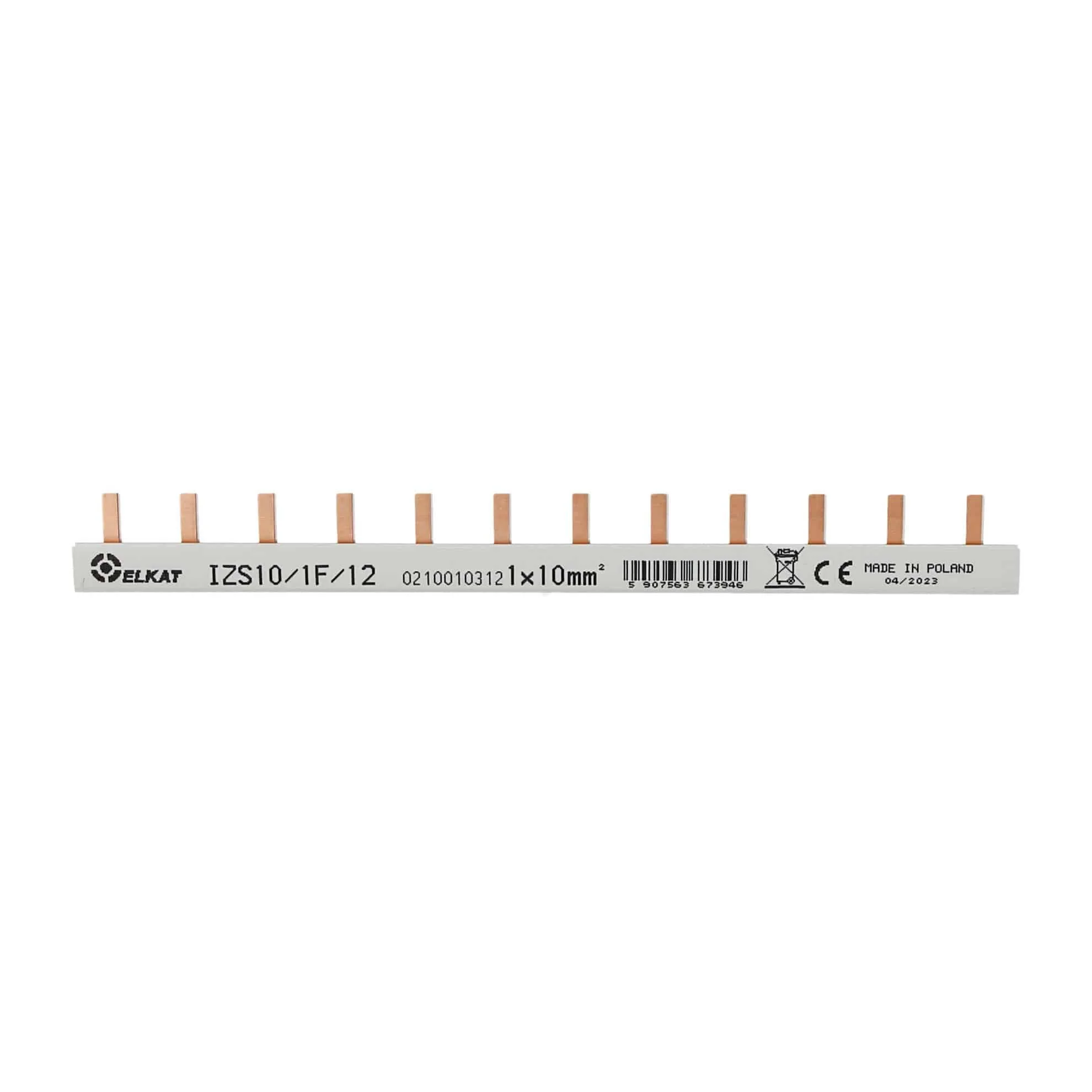

IZS10/1F

1-phase, 63A insulated comb busbar with pins

    • 1 Phase

    • 10mm2 cross-section

    • 17,8 mm module dimension

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norms Conformity IEC 60947-1, IEC 60947-7-1

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Customisable by Length

    • Customisable Print

    • ZS-10/1F Endcap Accessory

    • Accessory catalogue number : 03

  • We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0210010312

    • Length - 12 modules - 215 [mm]

    • Packed by 40/1,70 [Kg]

    • Packed by 480 - 20,40[Kg]

    • Catalogue Number - 0210010354

    • Length - 54 modules - 1000 [mm]

    • Packed by 40 - 8,00 [Kg]

    • Catalogue Number - 0210010357

    • Length - 57 modules - 1025 [mm]

    • Packed by 40 - 8,50 [Kg]

ZS-10/1F endcap accessory

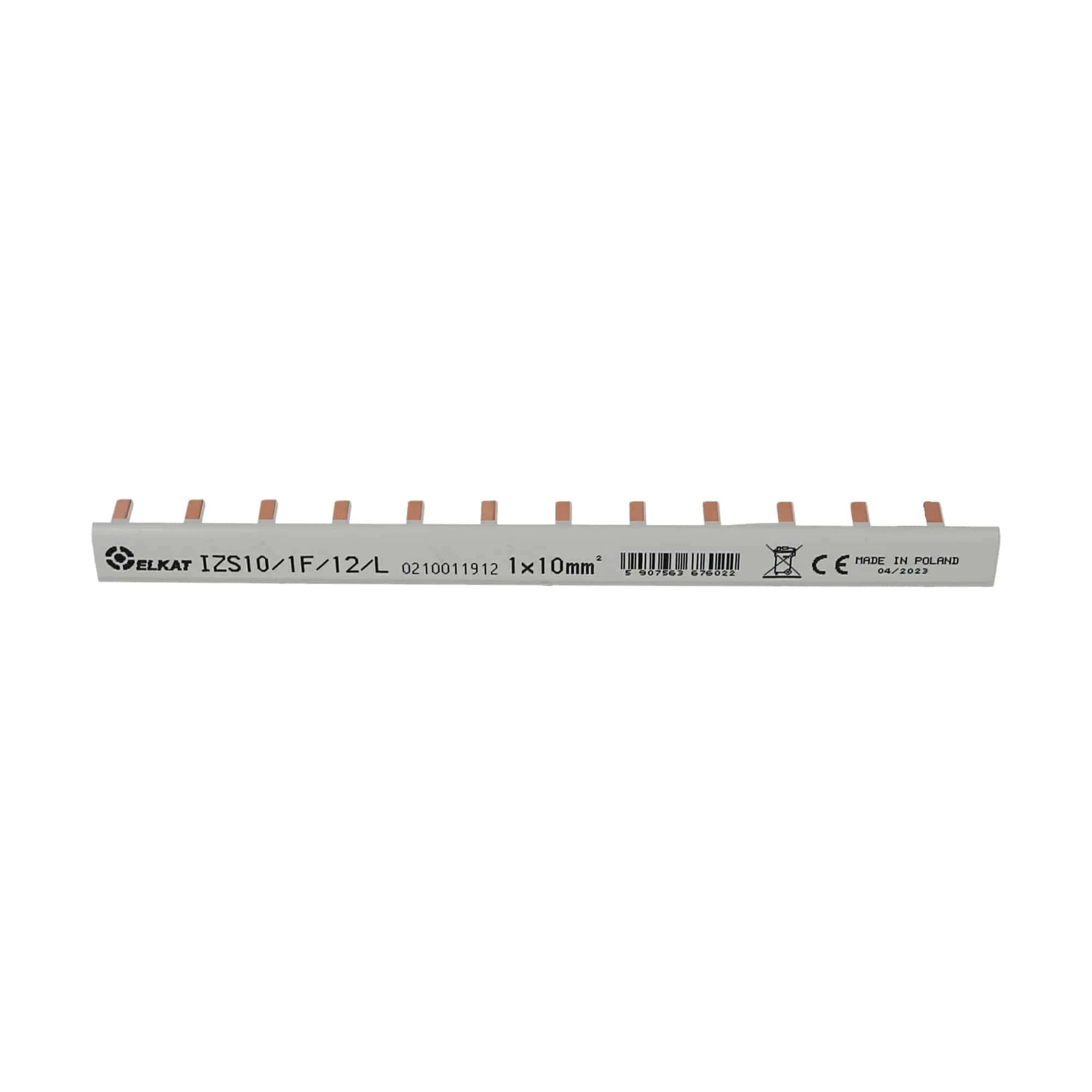

IZS10/1F/L

1-phase, 63A insulated comb busbar with pins, bent 90°

    • 1 Phase

    • 10 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm IEC 60947-1, IEC 60947-7-1

    • Customizable by length

    • adjustable print

    • ZS-10/1F/L Endcap Accessory

    • Catalogue number - 18

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0210011912

    • Length - 12 modules - 160 [mm]

    • Packed by 20 - 1,87 [Kg]

    • Packed by 240 - 22,44 [Kg]

    • Catalogue Number - 0210011954

    • Length - 54 modules - 1000 [mm]

    • Packed by 20 - 9,40 [Kg]

ZS-1F/L Endcap Accessory

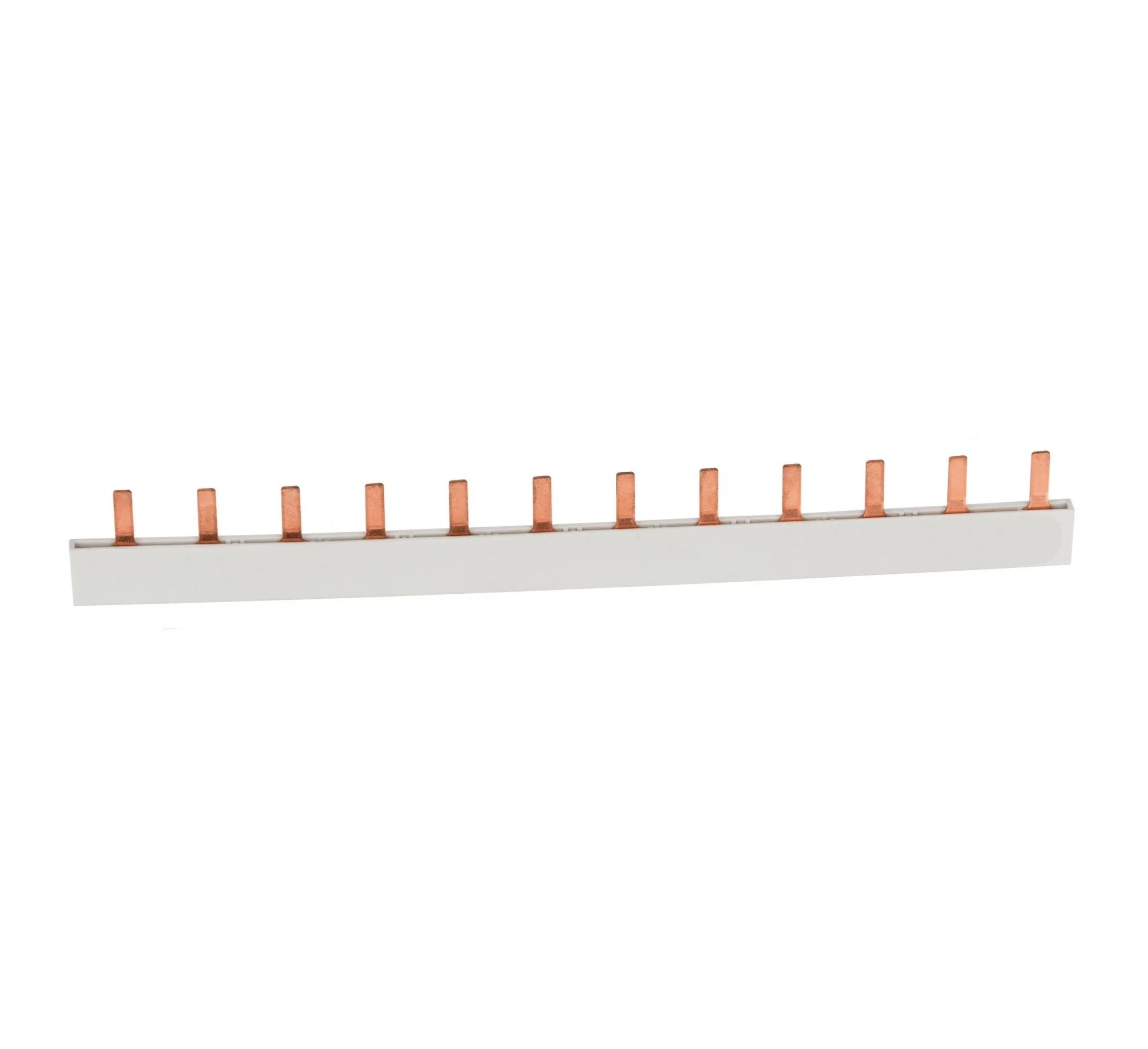

IZS10/1F/C

1-phase, 63A insulated comb busbar with pins, enclosed insulation

    • 1 Phase

    • 10 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PC-ABS

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm compliance IEC 60947-1, IEC 60947-7-1

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below

Standard Variants

    • Catalogue Number - 0210011512

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 1,46 [Kg]

    • Packed by 480 - 17,54 [Kg]

IZS10/1F/1500V

1-phase, 63A insulated comb busbar with pins

    • 1 Phase

    • 10 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm compliance IEC 60947-1, IEC 60947-7-1

    • The Bus Bar is Custimzable by length

    • Standard lngth models are 12, 54 and 57 modules

    • We provide suitable endcaps

    • Custom Prints

    • ZS-10/1F Endcap Accessory

    • Accessory Catalogue Number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0210012012

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 1,70 [Kg]

    • Packed by 480/20,40 [Kg]

    • Catalogue Number - 0216021654

    • Length - 54 modules - 1000 [mm]

    • Packed by 40 - 8,00 [Kg]

    • Catalogue Number - 0216021657

    • Length - 57 modules - 1025 [mm]

    • Packed by 40 - 8,50 [Kg]

ZS-10/1F Endcap Accessory

IZS16/1F

1-phase, 100A insulated comb busbar with pins

    • 1 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm Compliance IEC 60947-1, IEC 60947-7-1

    • The Bus Bar is Custimzable by length

    • Standard lngth models are 12 and 36 modules

    • We provide suitable endcaps

    • The insulators are divided by phase

    • ZS-16/1F Endcap Accessory

    • accessory catalogue number 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0216010312

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 2,20 [Kg]

    • Packed by 480 - 26,40 [Kg]

    • Catalogue Number - 0216010354

    • Length - 54 modules - 1000 [mm]

    • Packed by 40 - 10,10 [Kg]

    • Catalogue Number - 0216010357

    • Length - 54 modules - 1025 [mm]

    • Packed by 40 - 10,70 [Kg]

ZS-16/3F Endcap Accessory

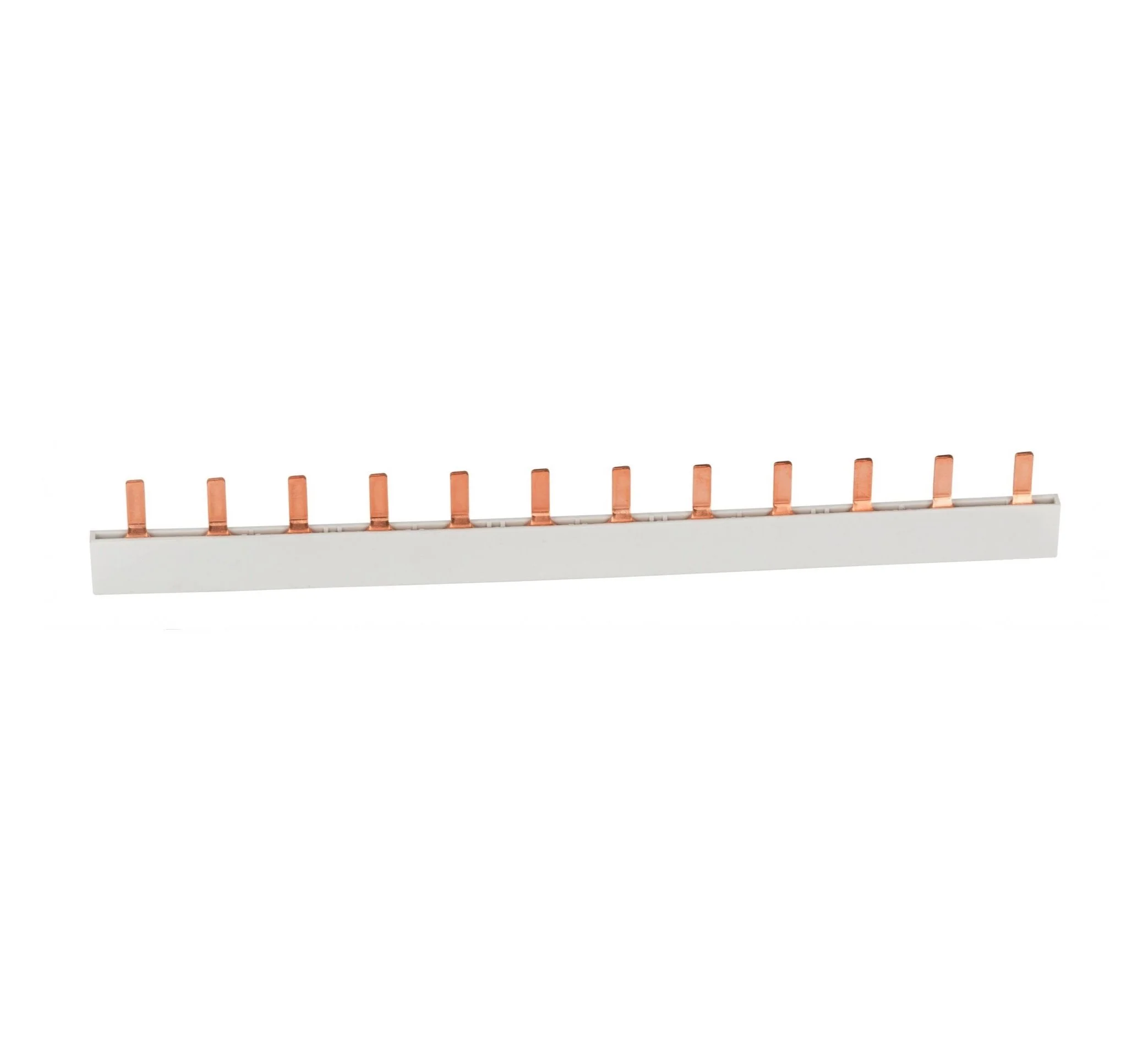

IZS16/1F/C

1-phase, 100A insulated comb busbar with pins, enclosed insulation

    • 1 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PC-ABS

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm Compliance IEC 60947-1, IEC 60947-7-1

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0216011512

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 2,06 [Kg]

    • Packed by 480 - 24,74 [Kg]

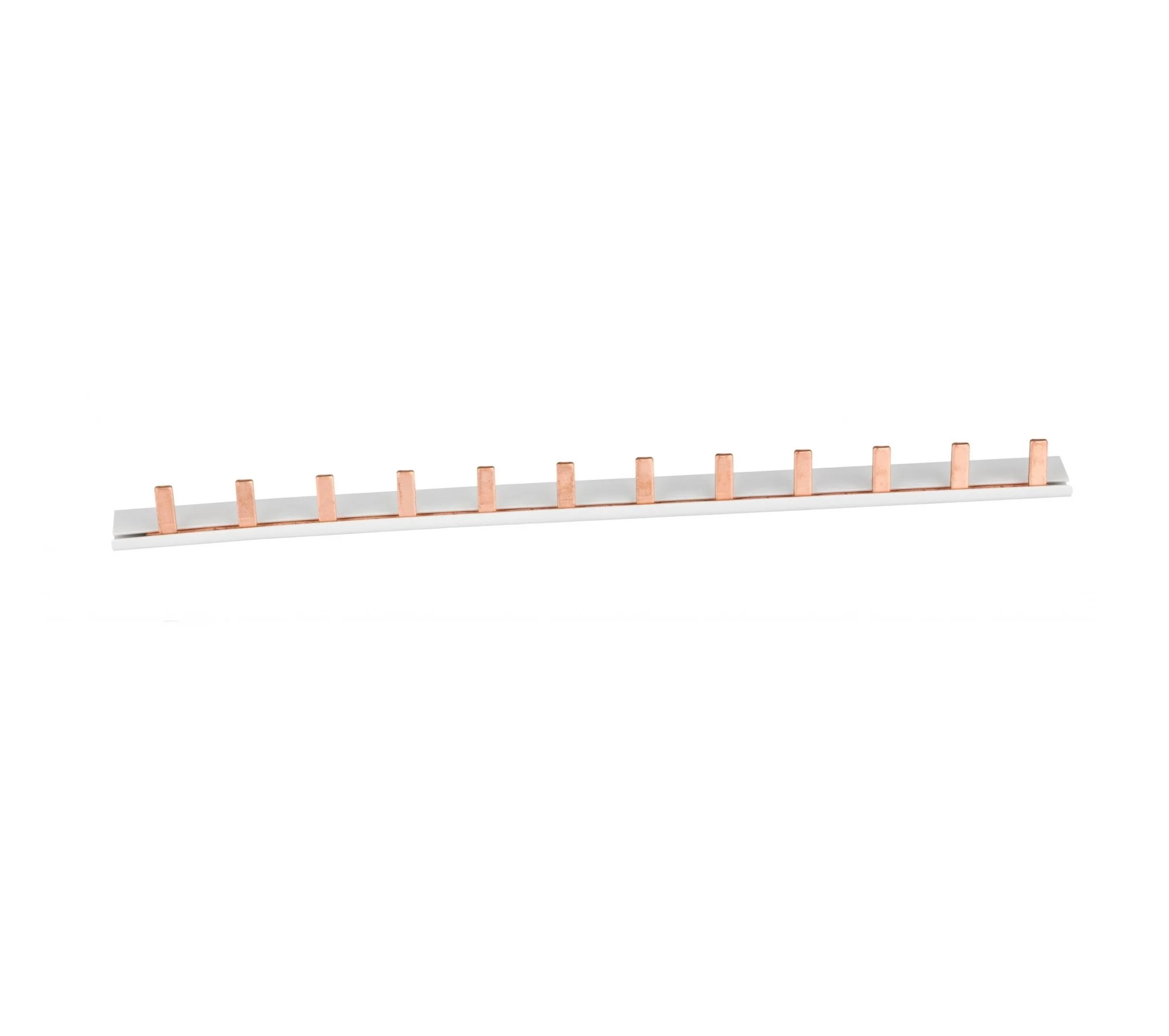

IZS16/1F/L

1-phase, 100A insulated comb busbar with pins, bent 90°

    • 1 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm IEC 60947-1, IEC 60947-7-1

    • Customizable by length

    • adjustable print

    • ZS-16/1F/L Endcap Accessory

    • Catalogue number - 18

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0216011912

    • Length - 12 modules - 215 [mm]

    • Packed by 40 - 2,00 [Kg]

    • Packed by 480 - 24,00 [Kg]

    • Catalogue Number - 0216011954

    • Length - 54 modules - 1000 [mm]

    • Packed by 40- 9,70 [Kg]

ZS-16/1F/L Endcap Accessory

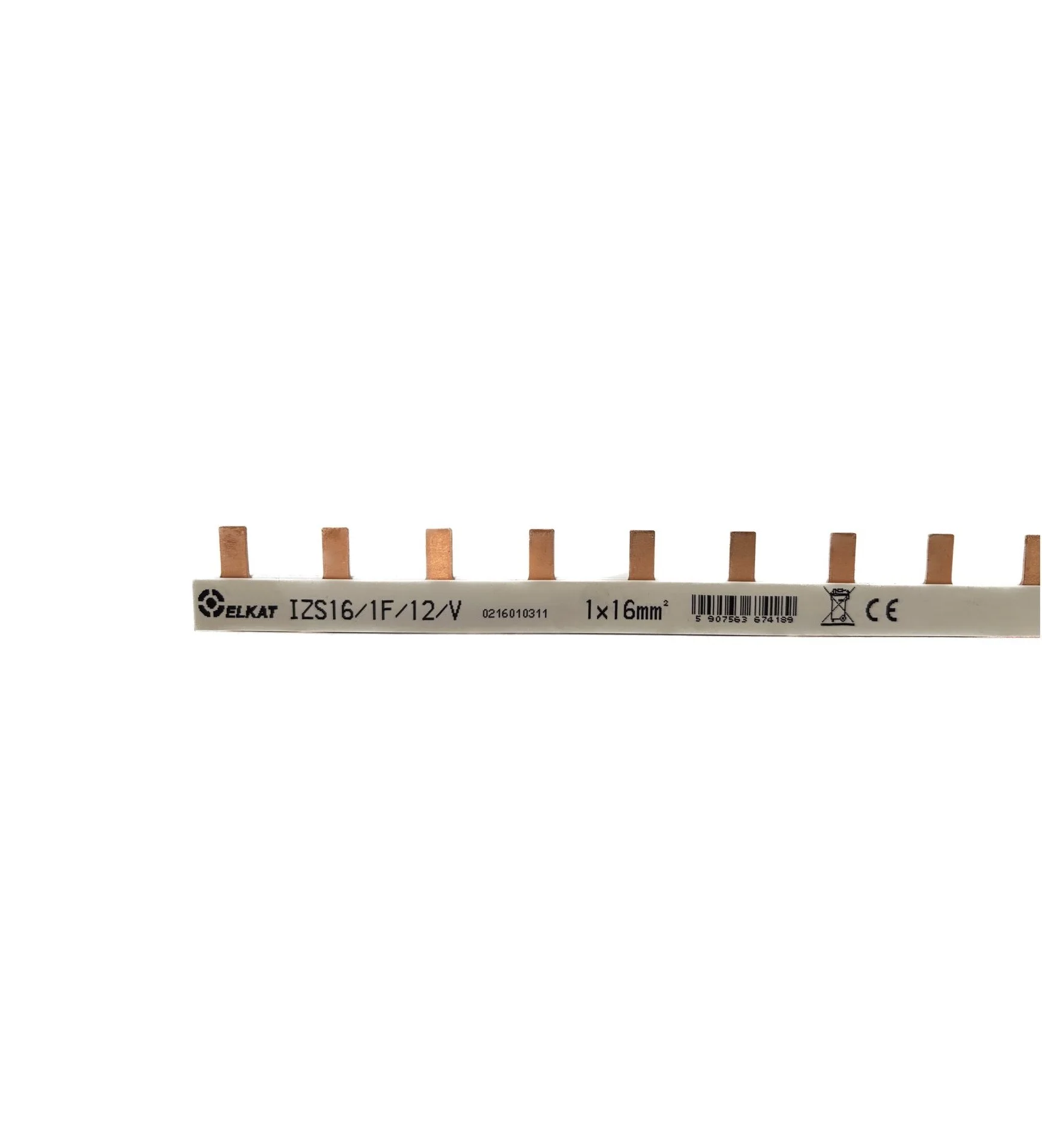

IZS16/1F/V

1-phase, 100A insulated comb busbar with pins

    • 1 Phase

    • 16 mm2 cross-section

    • 27 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm IEC 60947-1, IEC 60947-7-1

    • Customizable by length

    • adjustable print

    • ZS-16/1F Endcap Accessory

    • Catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

    • Catalogue Number - 0216010712

    • Length - 12 modules - 320 [mm]

    • Packed by 40 - 3,40 [Kg]

    • Packed by 240 - 20,40 [Kg]

    • Catalogue Number - 0216010736

    • Length - 36 modules - 1000 [mm]

    • Packed by 40- 10,60 [Kg]

Standard Variants

ZS-16/1F Endcap Accessory

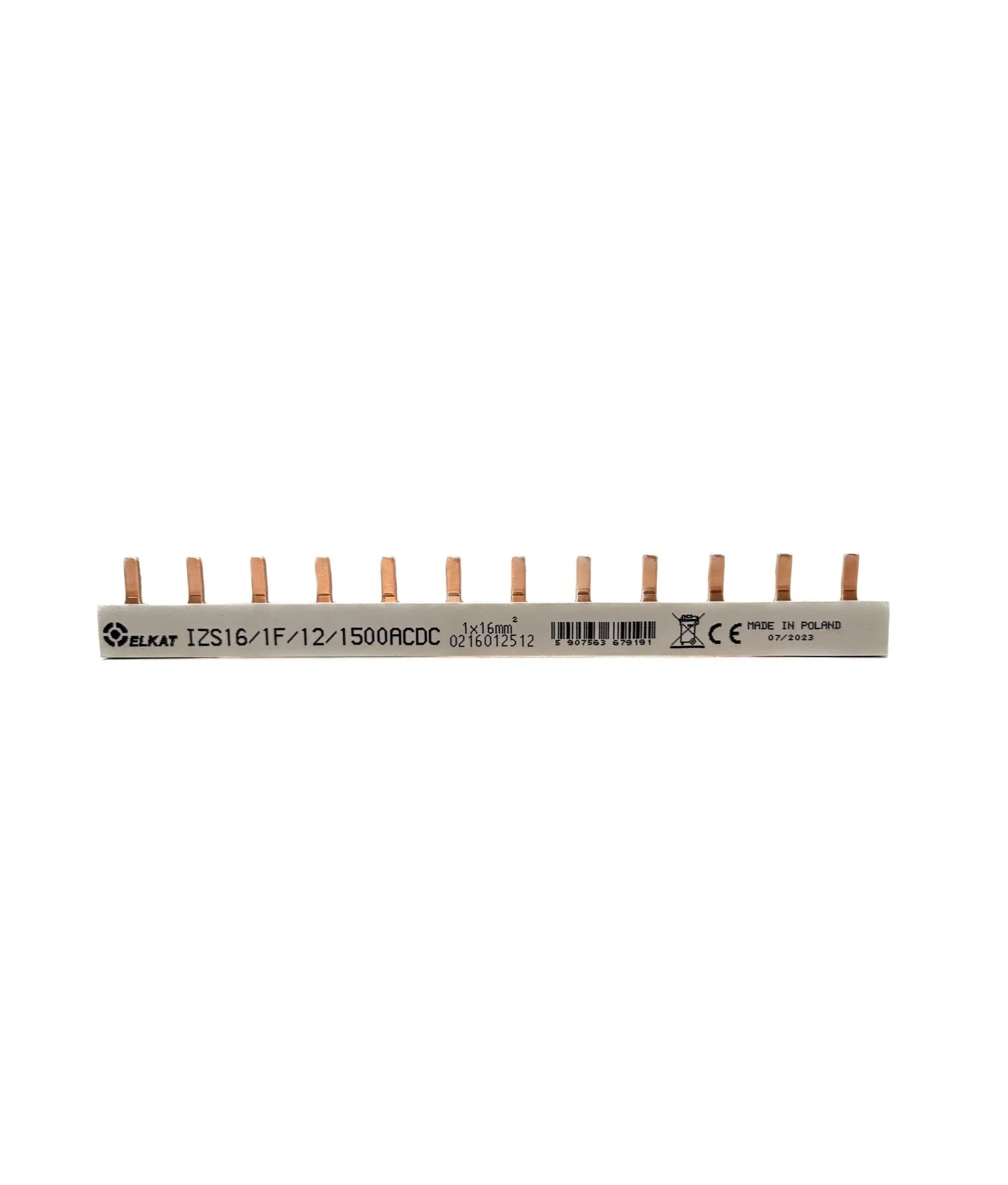

IZS16/1F/1500V

1-phase, 100A insulated comb busbar with pins

    • 1 Phase

    • 16 mm2 cross-section

    • 17,8 mm module dimension

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Nominal voltage (Ue) 240 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norm IEC 60947-1, IEC 60947-7-1

    • Customizable by length

    • adjustable print

    • ZS-16/1F Endcap Accessory

    • Catalogue number - 03

  • We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually . Quote your demand in the link below.

Standard Variants

    • Catalogue Number - 0216012012

    • Length - 12 modules - 3215 [mm]

    • Packed by 40 - 2,20 [Kg]

    • Packed by 480 - 26,40 [Kg]

    • Catalogue Number - 0216012054

    • Length - 54 modules - 1000 [mm]

    • Packed by 40- 10,10 [Kg]

    • Catalogue Number - 0216012057

    • Length - 57 modules - 1025 [mm]

    • Packed by 40- 10,70 [Kg]

ZS-16/1F Endcap Accessory
