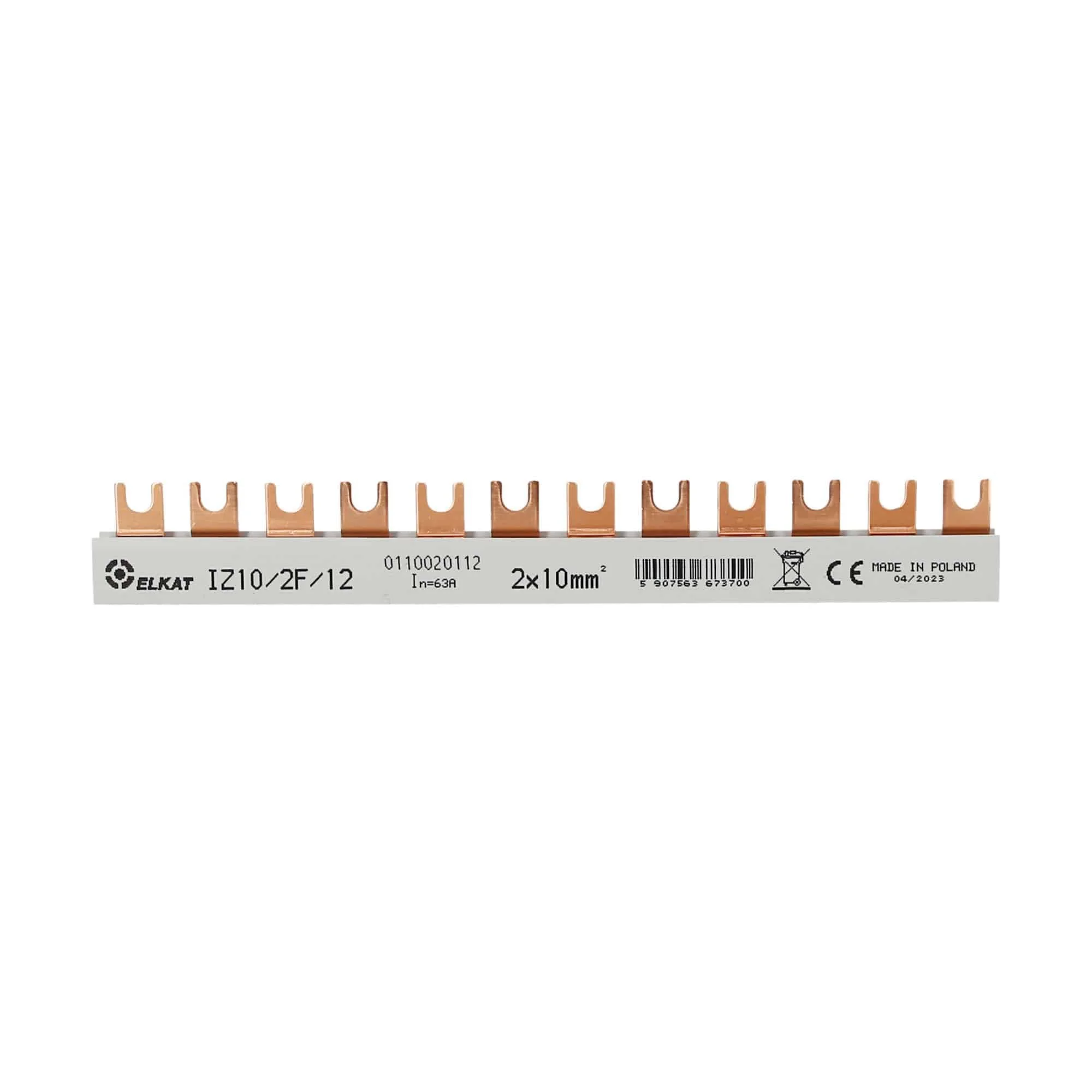

IZ10/2F

2-phase, 63A insulated comb busbar with forks

- 2 Phase
- 10mm2 cross-section
- 18 mm module dimension
- Pure 99,9% ETP Copper code CW004A
- Isolation - PVC
- Color of the Isolation material - RAL 7035 Grey
- Nominal voltage (Ue) 240/415 [V]
- Rated insulation voltage (Ui) 500 [V]
- max. current carrying capacity (Ie) 63 [A]
- Withstand surge voltage. (Uimp) 4 [kV]
- Norms Conformity IEC 60947-1, IEC 60947-7-1
- Customisable by Length
- We provide suitable end-caps
- Z-10/2F Endcap Accessory
- Accessory catalogue number - 07
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below

- Catalogue Number - 0110020112
- Length - 12 modules - 215 [mm]
- Packed by 20 - 1,90 [Kg]
- Packed by 240 - 24,48 [Kg]
- Catalogue Number - 0110020154
- Length - 54 modules - 1000 [mm]
- Packed by 20 - 8,10 [Kg]
- Catalogue Number - 0110020158
- Length - 56 modules - 1010 [mm]
- Packed by 20 - 10,46 [Kg]

Z-10/2F endcap accessory

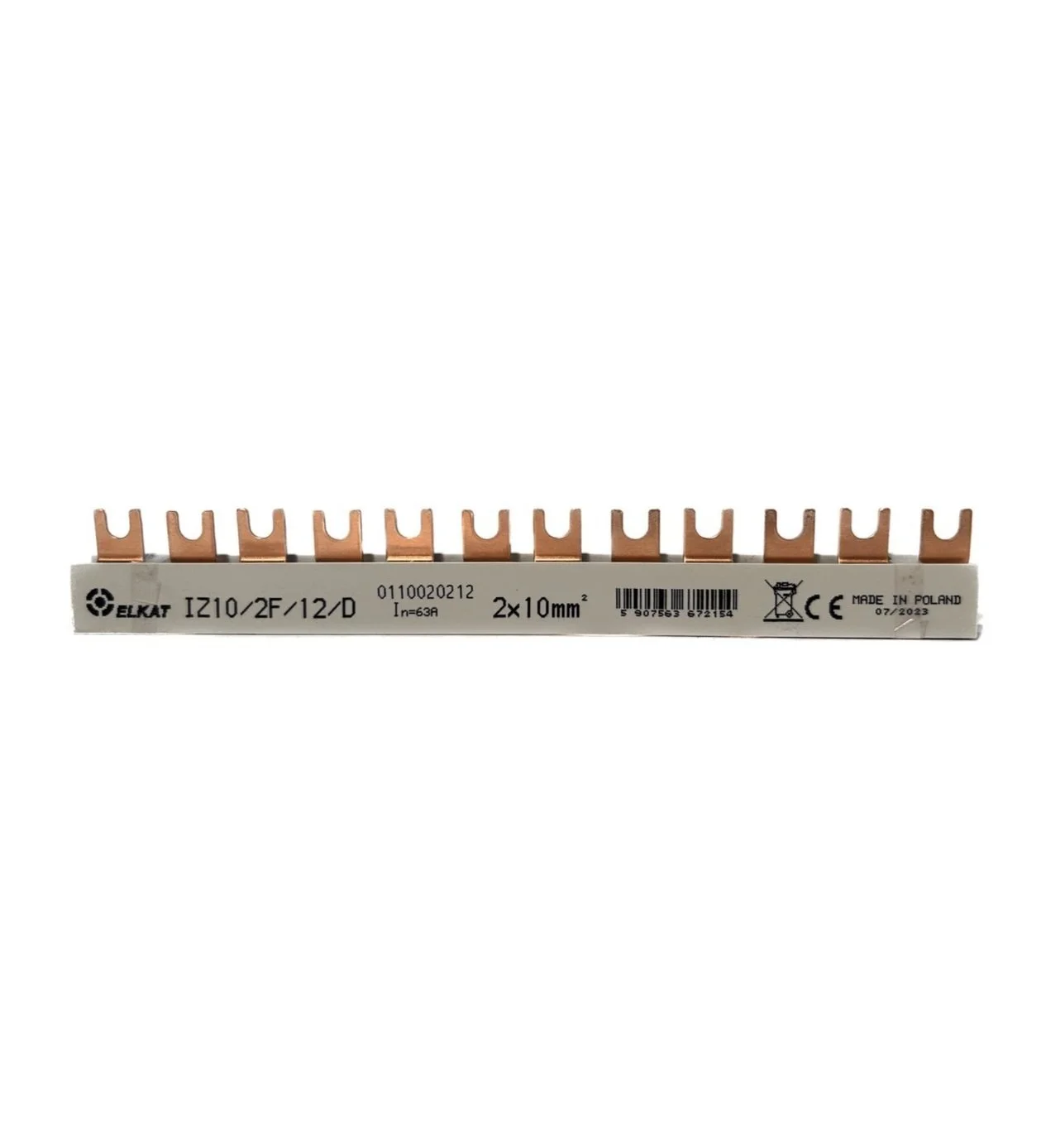

IZ10/2F/D

2-phase, 63A insulated comb busbar with forks, divided by phase.

- 2 Phase
- 10mm2 cross-section
- 18 mm module dimension
- Pure 99,9% ETP Copper code CW004A
- Isolation - PVC
- Color of the Isolation material - RAL 7035 Grey
- Nominal voltage (Ue) 240/415 [V]
- Rated insulation voltage (Ui) 500 [V]
- max. current carrying capacity (Ie) 63 [A]
- Withstand surge voltage. (Uimp) 4 [kV]
- Norms Conformity IEC 60947-1, IEC 60947-7-1
- Customisable by Length
- The busbar is divided by length
- We provide suitable end-caps
- Z-10/1F Endcap Accessory
- Accessory catalogue number - 03
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below

- Catalogue Number - 0110020212
- Length - 12 modules - 215 [mm]
- Packed by 20 - 2,10 [Kg]
- Packed by 240 - 25,20 [Kg]
- Catalogue Number - 0110020254
- Length - 54 modules - 1000 [mm]
- Packed by 20 - 9,44 [Kg]
- Catalogue Number - 0110020256
- Length - 56 modules - 1010 [mm]
- Packed by 20 - 11,41 [Kg]

Z-10/1F endcap accessory

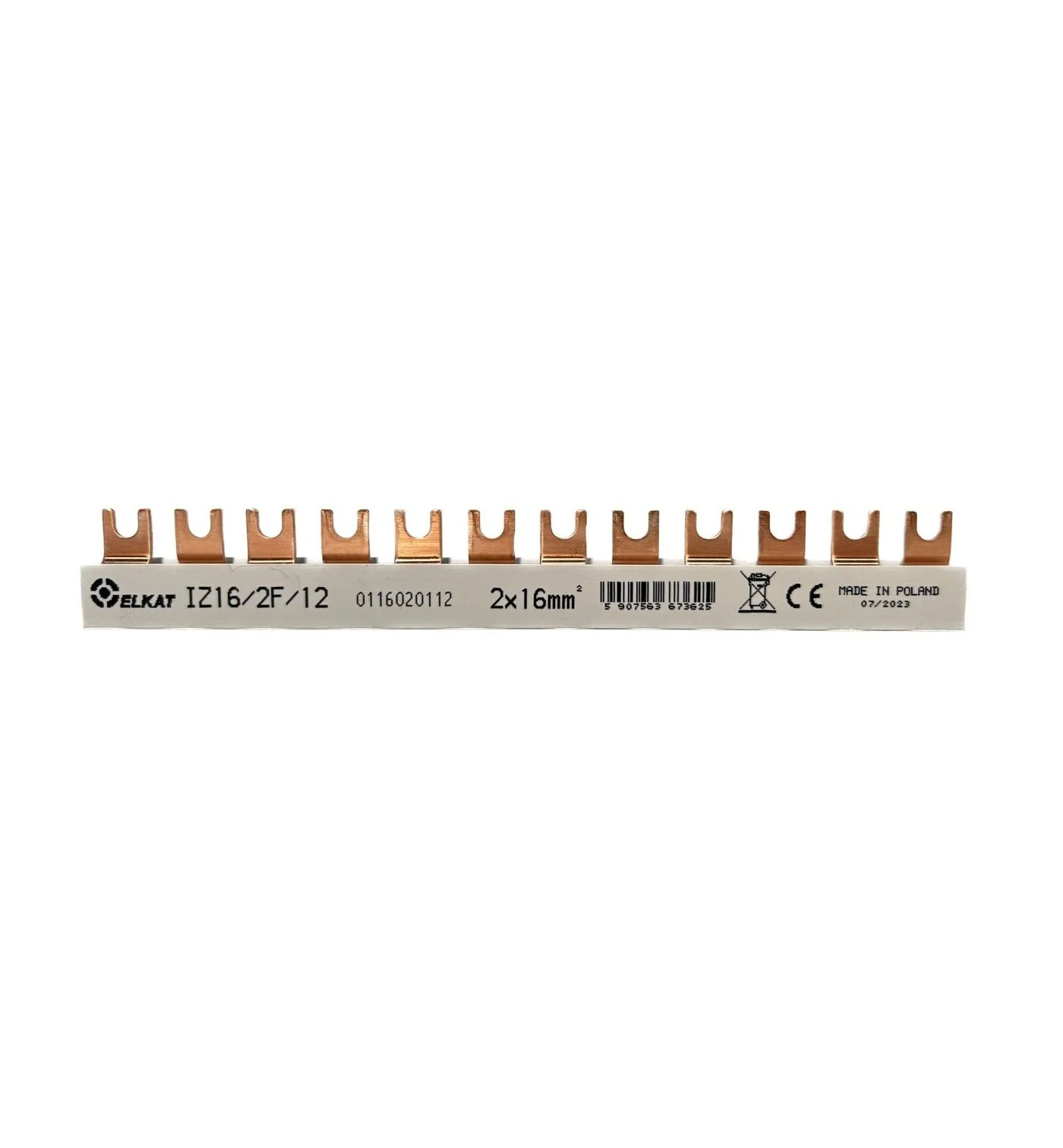

2-phase, 100A insulated comb busbar with forks .

- 2 Phase
- 10mm2 cross-section
- 18 mm module dimension
- Pure 99,9% ETP Copper code CW004A
- Isolation - PVC
- Color of the Isolation material - RAL 7035 Grey
- Nominal voltage (Ue) 240/415 [V]
- Rated insulation voltage (Ui) 500 [V]
- max. current carrying capacity (Ie) 100 [A]
- Withstand surge voltage. (Uimp) 4 [kV]
- Norms Conformity IEC 60947-1, IEC 60947-7-1
- Customisable by Length
- We provide suitable end-caps
- Z-16/2F Endcap Accessory
- Accessory catalogue number - 07
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below

- Catalogue Number - 0116020112
- Length - 12 modules - 215 [mm]
- Packed by 20 - 2,10 [Kg]
- Packed by 240 - 25,20 [Kg]
- Catalogue Number - 0116020156
- Length - 56 modules - 1010 [mm]
- Packed by 20 - 10,80 [Kg]

Z-16/2F endcap accessory

2-phase, 63A insulated comb busbar with forks, divided by phase.

- 2 Phase
- 10mm2 cross-section
- 18 mm module dimension
- Pure 99,9% ETP Copper code CW004A
- Isolation - PVC
- Color of the Isolation material - RAL 7035 Grey
- Nominal voltage (Ue) 240/415 [V]
- Rated insulation voltage (Ui) 500 [V]
- max. current carrying capacity (Ie) 100 [A]
- Withstand surge voltage. (Uimp) 4 [kV]
- Norms Conformity IEC 60947-1, IEC 60947-7-1
- Customisable by Length
- We provide suitable endocarps
- Z-16/2F Endcap Accessory
- Accessory catalogue number - 07
We are the manufacturer with high knowledge of our products. Both technicals and prices are suited individually. Quote your demand below

- Catalogue Number - 0116020212
- Length - 12 modules - 215 [mm]
- Packed by 20 - 2,52 [Kg]
- Packed by 240 - 30,24 [Kg]
- Catalogue Number - 0116020256
- Length - 56 modules - 1010 [mm]
- Packed by 20 - 11,30 [Kg]

Z-16/1F endcap accessory
