IZ10/4F

4-phase, 63A insulated comb busbar with forks

    • 4 Phases

    • 10mm2 cross-section

    • 18 mm module dimension

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 63[A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norms Conformity IEC 60947-1, IEC 60947-7-1

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Customisable by Length

    • Customisable Print

    • Z-10/4F Endcap Accessory

    • Accessory catalogue number : 11

  • We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0110040112

    • Length - 12 modules - 215 [mm]

    • Packed by 10 - 1,50 [Kg]

    • Packed by 120 - 18,00 [Kg]

    • Catalogue Number - 0110040156

    • Length - 56 modules - 1000 [mm]

    • Packed by 10 - 7,00 [Kg]

Z-10/4F endcap accessory

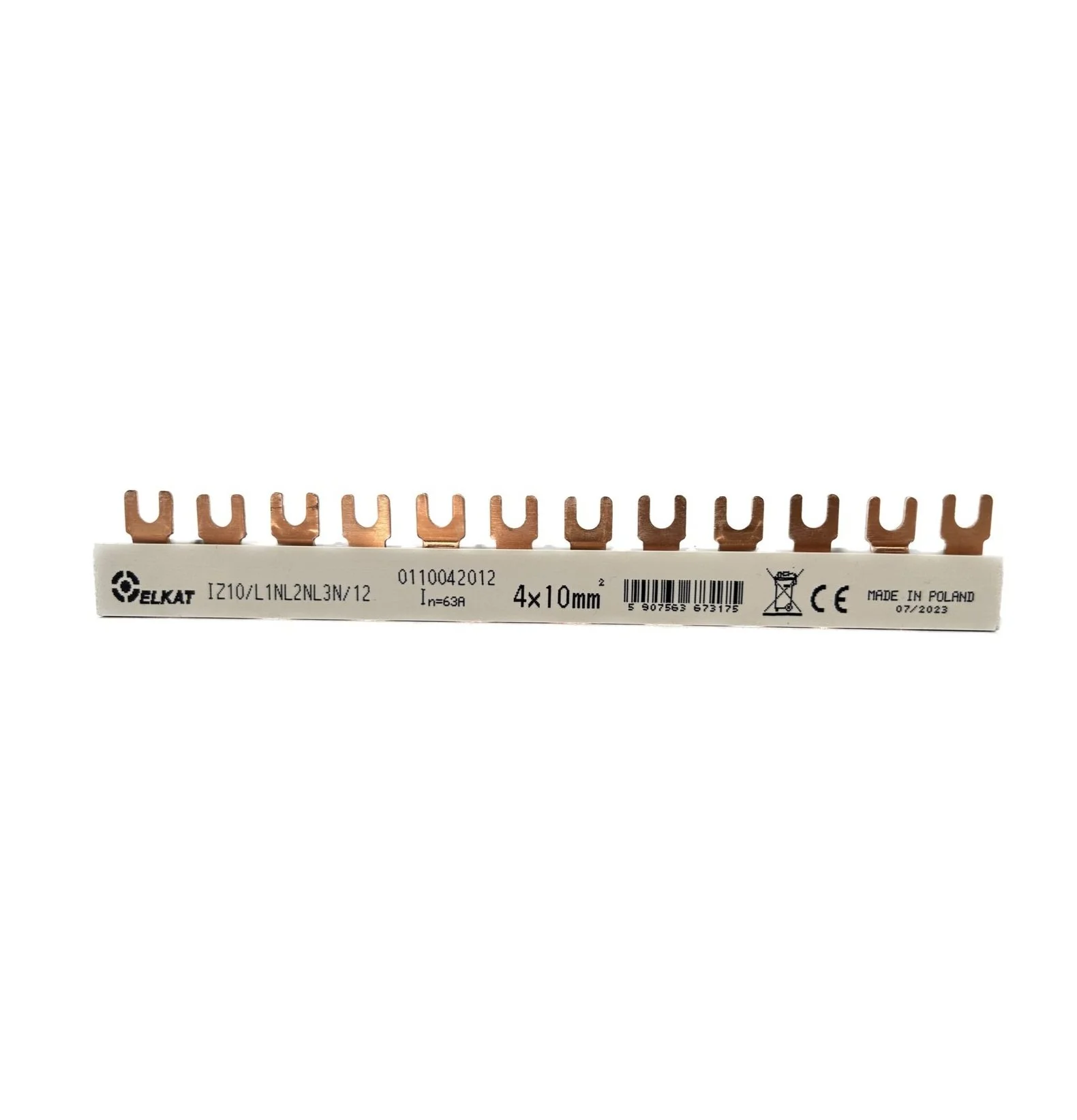

IZ10/L1NL2NL3N

3-phase, 63A insulated comb busbar with forks + neutral phase

    • 4 Phases

    • 10 mm2 cross-section

    • 18 mm module dimension

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 690 [V]

    • max. current carrying capacity (Ie) 63[A]

    • Withstand surge voltage. (Uimp) 6 [kV]

    • Norms Conformity IEC 60947-1, IEC 60947-7-1

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Customisable by Length

    • Customisable Print

    • Z-10/4F Endcap Accessory

    • Accessory catalogue number : 11

  • We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0110042012

    • Length - 12 modules - 220 [mm]

    • Packed by 10 - 1,40 [Kg]

    • Packed by 120 - 16,70 [Kg]

    • Catalogue Number - 0110042018

    • Length - 18 modules - 320 [mm]

    • Packed by 10 - 2,09 [Kg]

    • Packed by 60 - 12,52 [Kg]

    • Catalogue Number - 0110042024

    • Length - 24 modules - 440 [mm]

    • Packed by 10 - 2,79 [Kg]

    • Catalogue Number - 0110042054

    • Length - 54 modules - 1000 [mm]

    • Packed by 10 - 6,60 [Kg]

Z-10/4F endcap accessory

IZ16/4F

4-phase, 100A insulated comb busbar with forks

    • 4 Phases

    • 16 mm2 cross-section

    • 18 mm module dimension

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norms Conformity IEC 60947-1, IEC 60947-7-1

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Customisable by Length

    • Customisable Print

    • Z-16/4F Endcap Accessory

    • Accessory catalogue number : 12

  • We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0116040108

    • Length - 8 modules - 145 [mm]

    • Packed by 10 - 1,05 [Kg]

    • Packed by 120 - 6,30 [Kg]

    • Catalogue Number - 0116040112

    • Length - 12 modules - 215 [mm]

    • Packed by 10 - 1,72 [Kg]

    • Packed by 120 - 10,32 [Kg]

    • Catalogue Number - 0116040156

    • Length - 56 modules - 1010 [mm]

    • Packed by 10 - 9,24 [Kg]

Z-16/4F endcap accessory

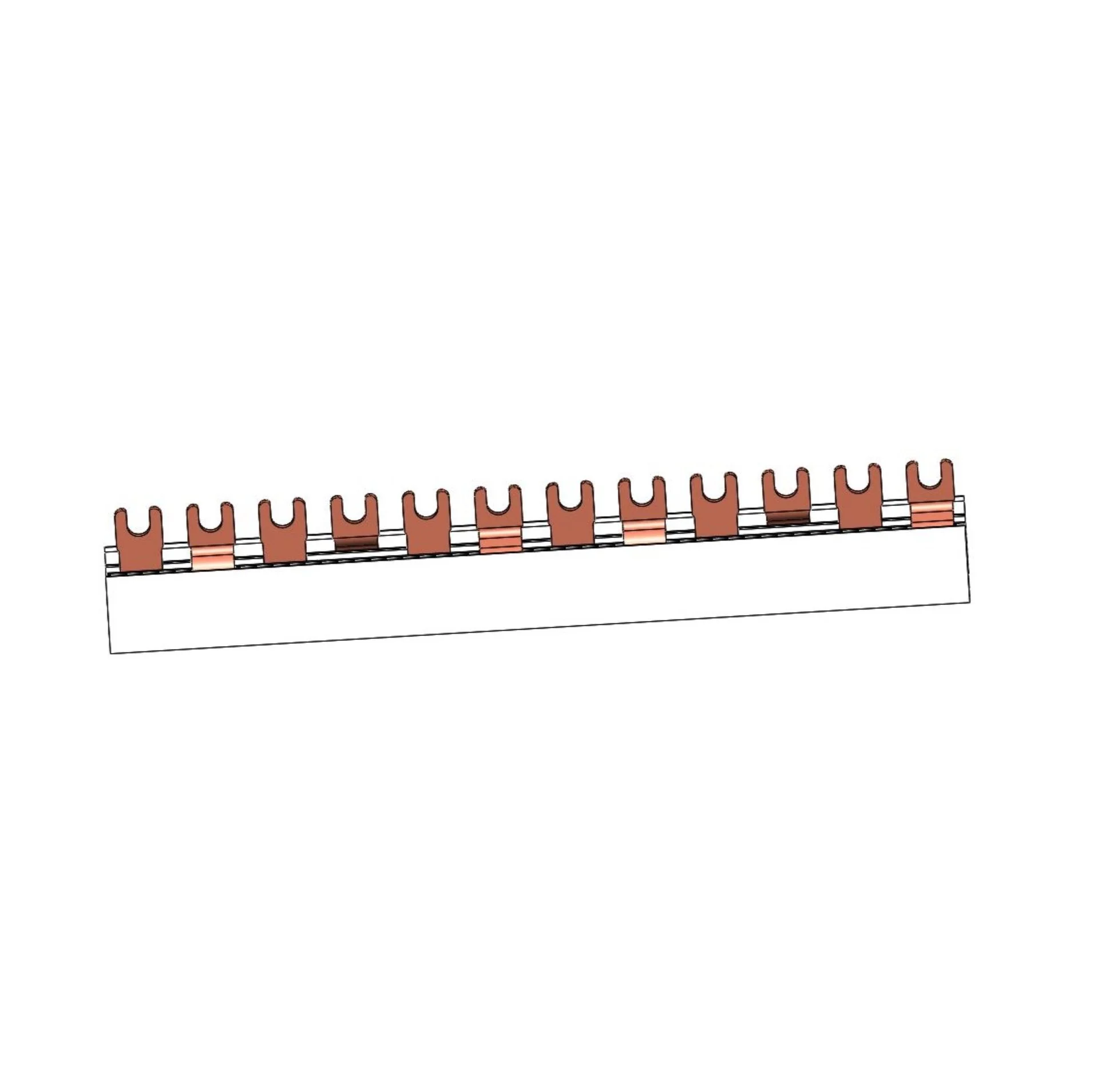

IZ16/L1NL2NL3N

3-phase, 100A insulated comb busbar with forks + neutral phase

    • 4 Phases

    • 16 mm2 cross-section

    • 18 mm module dimension

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 690 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 6 [kV]

    • Norms Conformity IEC 60947-1, IEC 60947-7-1

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Customisable by Length

    • Customisable Print

    • Z-16/4F Endcap Accessory

    • Accessory catalogue number : 13

  • We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0116042012

    • Length - 12 modules - 220 [mm]

    • Packed by 10 - 2,33 [Kg]

    • Packed by 120 - 23,33 [Kg]

    • Catalogue Number - 0116042018

    • Length - 18 modules - 320 [mm]

    • Packed by 10 - 2,92 [Kg]

    • Packed by 60 - 17,50 [Kg]

    • Catalogue Number - 0116042024

    • Length - 24 modules - 440 [mm]

    • Packed by 10 - 3,89 [Kg]

    • Catalogue Number - 0116042054

    • Length - 54 modules - 1000 [mm]

    • Packed by 10 - 8,78 [Kg]

Z-10/4F endcap accessory

IZ16/4F/D

4-phase, 100A insulated comb busbar with forks, divided by phase

    • 4 Phases

    • 16 mm2 cross-section

    • 18 mm module dimension

    • Nominal voltage (Ue) 240/415 [V]

    • Rated insulation voltage (Ui) 500 [V]

    • max. current carrying capacity (Ie) 100 [A]

    • Withstand surge voltage. (Uimp) 4 [kV]

    • Norms Conformity IEC 60947-1, IEC 60947-7-1

    • Pure 99,9% ETP Copper code CW004A

    • Isolation - PVC

    • Color of the Isolation material - RAL 7035 Grey

    • Customisable by Length

    • Customisable Print

    • Z-16/4F Endcap Accessory

    • Accessory catalogue number : 12

  • We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.

Standard Variants

    • Catalogue Number - 0116040208

    • Length - 8 modules - 145 [mm]

    • Packed by 10 - 1,00 [Kg]

    • Packed by 120 - 12,00 [Kg]

    • Catalogue Number - 0116040212

    • Length - 12 modules - 215 [mm]

    • Packed by 10 - 1,85 [Kg]

    • Packed by 120 - 22,20 [Kg]

    • Catalogue Number - 0116040256

    • Length - 56 modules - 1010 [mm]

    • Packed by 10 - 8,93 [Kg]

Z-10/4F endcap accessory
