DB-1
Distribution block for use in low voltage switchboards (1kV)
-
50 mm nominal Cross-section
7 wire outputs
-
Current carrying capacity (In) 192 [V]
Rated insulation voltage (Ui) 1000 AC/1500 DC [V]
Rated impulse withstand voltage (Uimp) 12 [kV]
-
Brass
PA6.6 insulator
-
We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.
-
Grey - DB1/SZ - 0150235325401
Blue - DB1/N - 0150235325402
Yellow + green - DB1/ZZ - 0150235325403
-
Packed by 5 - 1,12 [Kg]
Packed by 100 - 22,40 [Kg]

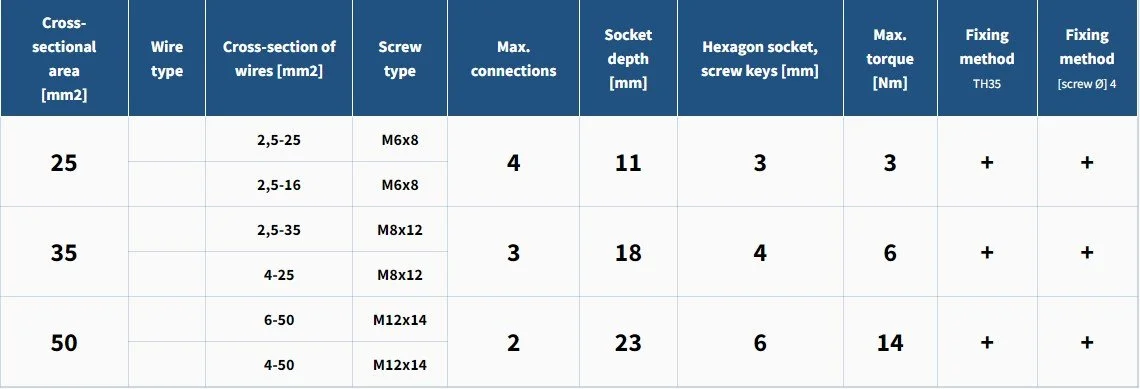

Input & Output
Click to expand

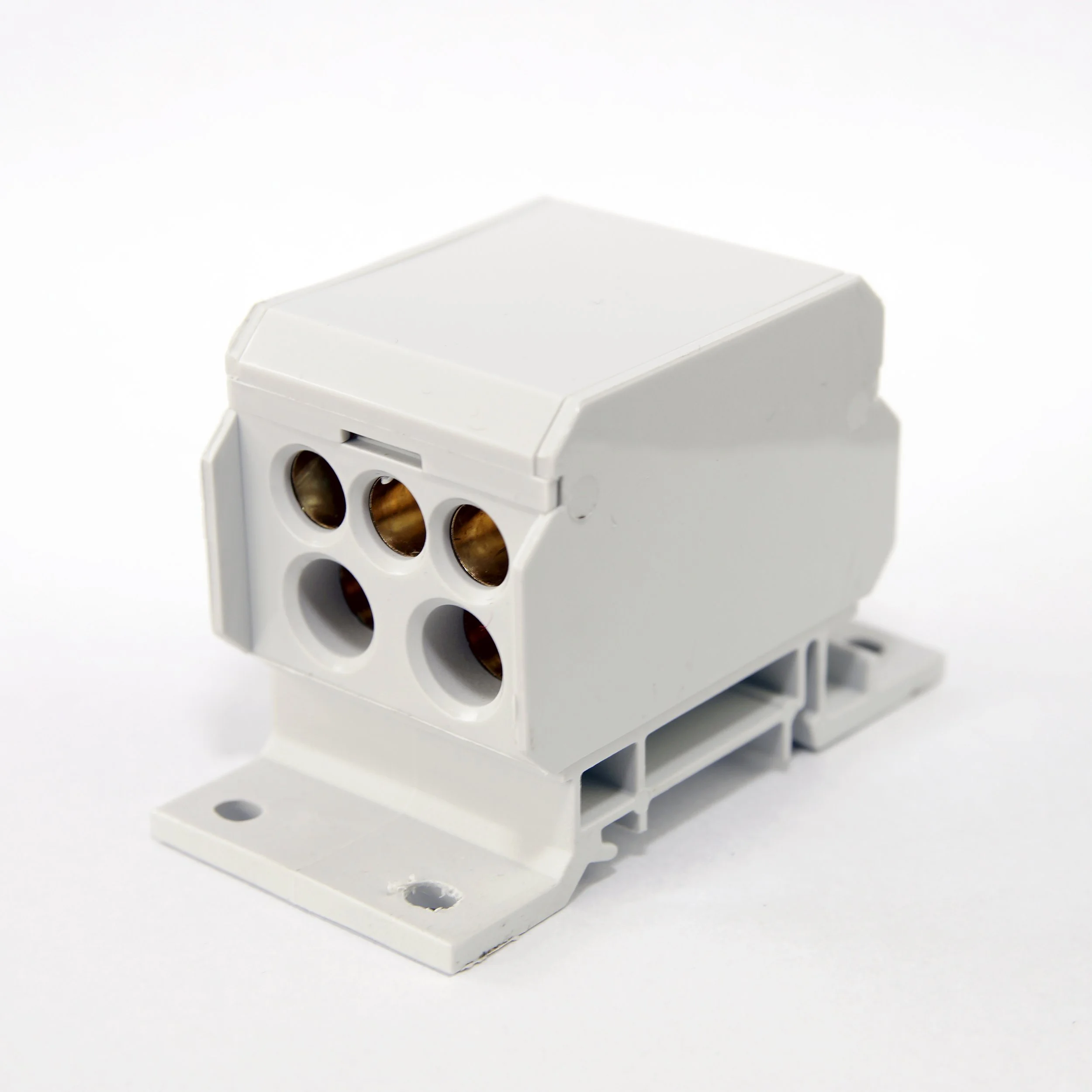

DB-2
Distribution block for use in low voltage switchboards (1kV)
-
50 mm nominal Cross-section
5 wire outputs
-
Current carrying capacity (In) 160 [V]
Rated insulation voltage (Ui) 1000 AC/1500 DC [V]
Rated impulse withstand voltage (Uimp) 12 [kV]
-
Brass
PA6.6 insulator
-
We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.
-
Grey - DB1/SZ - 0150235325401
Blue - DB1/N - 0150235325402
Yellow + green - DB1/ZZ - 0150235325403
-
Packed by 5 - 1,12 [Kg]
Packed by 100 - 22,40 [Kg]
Input & Output
Click to expand

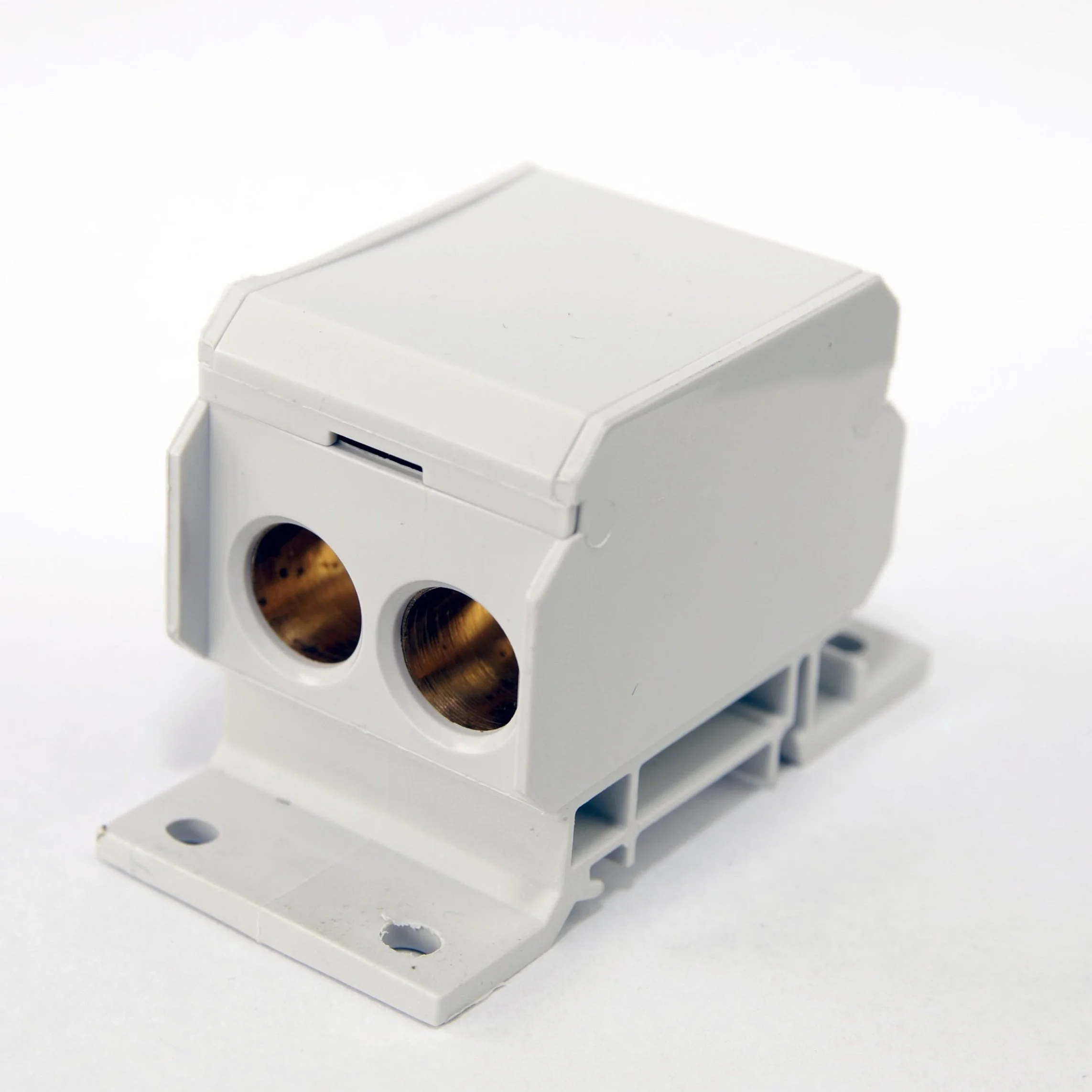

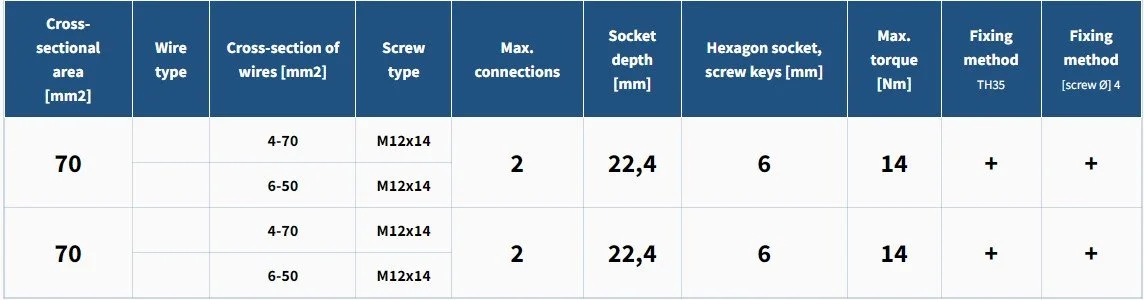

DB-4
Distribution block for use in low voltage switchboards (1kV)
-
70 mm nominal Cross-section
2 wire outputs
-
Current carrying capacity (In) 192 [V]
Rated insulation voltage (Ui) 1000 AC/1500 DC [V]
Rated impulse withstand voltage (Uimp) 12 [kV]
-
Brass
PA6.6 insulator
-
We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.
-
Grey - DB4/SZ - 0470200070201
Blue - DB4/N - 0470200070202
Yellow + green - DB4/ZZ - 0470200070203
-
Packed by 5 - 1,05 [Kg]
Packed by 100 - 21 [Kg]
Input & Output
Click to expand

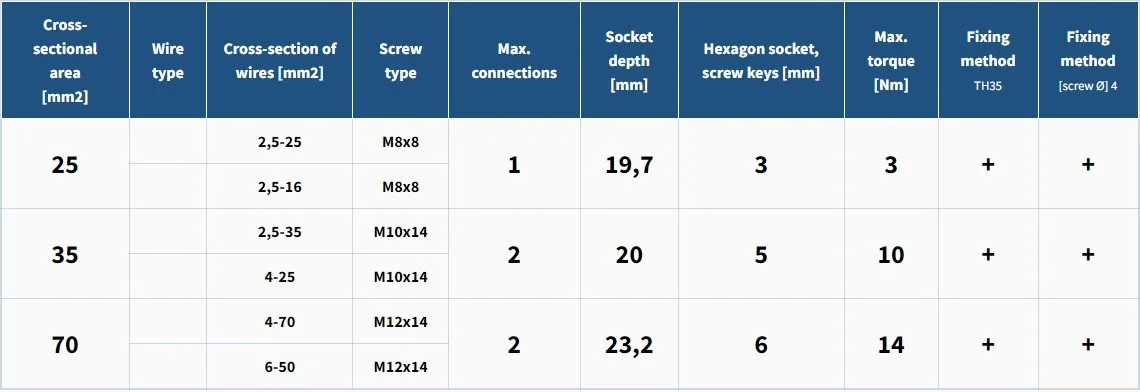

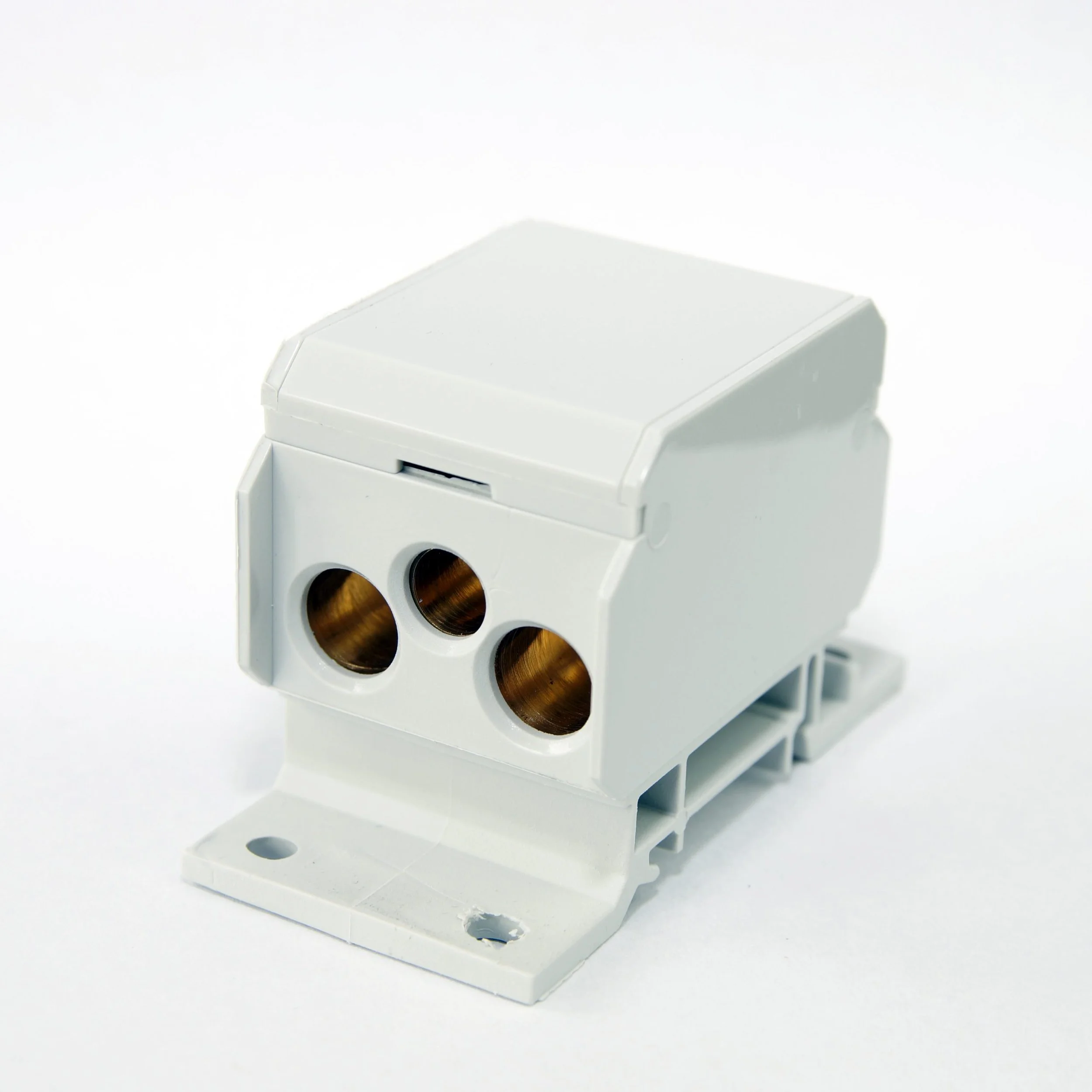

DB-6
Distribution block for use in low voltage switchboards (1kV)
-
70 mm nominal Cross-section
3 wire outputs
-
Current carrying capacity (In) 192 [V]
Rated insulation voltage (Ui) 1000 AC/1500 DC [V]
Rated impulse withstand voltage (Uimp) 12 [kV]
-
Brass
PA6.6 insulator
-
We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.
-
Grey - DB6/SZ - 0670235225101
Blue - DB6/N - 0670235225101
Yellow + green - DB6/ZZ - 0670235225101
-
Packed by 5 - 1,06 [Kg]
Packed by 100 - 21,2 [Kg]
Input & Output
Click to expand

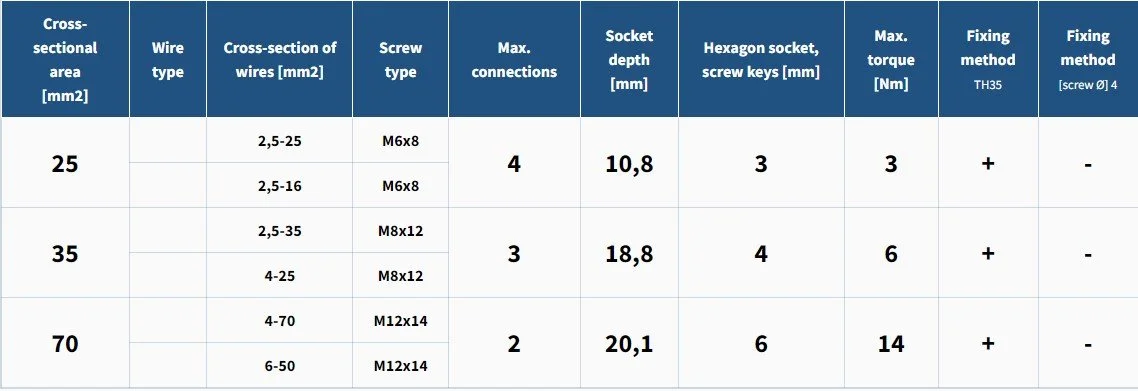

DB-7
Distribution block for use in low voltage switchboards (1kV)
-
70 mm nominal Cross-section
7 wire outputs
-
Current carrying capacity (In) 192 [V]
Rated insulation voltage (Ui) 1000 AC/1500 DC [V]
Rated impulse withstand voltage (Uimp) 12 [kV]
-
Brass
PA6.6 insulator
-
We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.
-
Grey - DB-7/SZ - 0770235325401
Blue - DB-7/N - 0770235325402
Yellow + green - DB-7/ZZ - 0770235325403
-
Packed by 5 - 1,12 [Kg]
Packed by 100 - 22,40 [Kg]
Input & Output
Click to expand

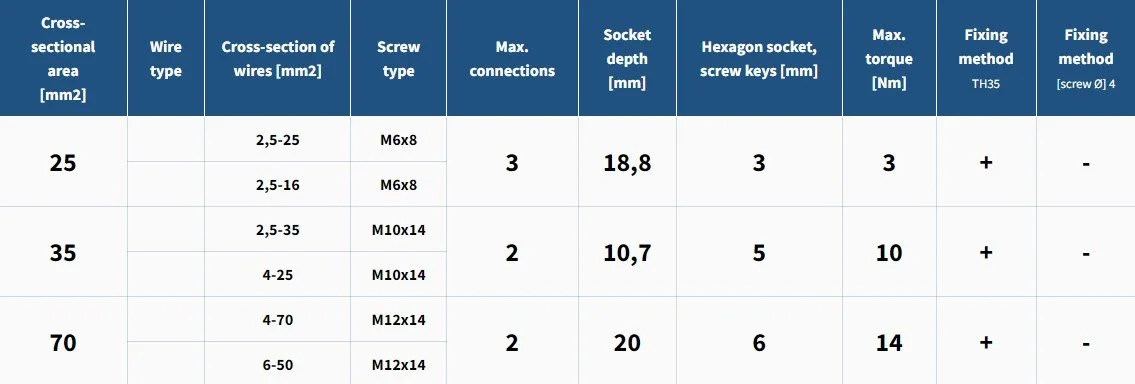

DB-8
Distribution block for use in low voltage switchboards (1kV)
-
70 mm nominal Cross-section
5 wire outputs
-
Current carrying capacity (In) 192 [V]
Rated insulation voltage (Ui) 1000 AC/1500 DC [V]
Rated impulse withstand voltage (Uimp) 12 [kV]
-
Brass
PA6.6 insulator
-
We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.
-
Grey - DB-8/SZ - 0870235225301
Blue - DB-8/N - 0870235225301
Yellow + green - DB-8/ZZ - 0870235225301
-
Packed by 5 - 1,13 [Kg]
Packed by 100 - 22,60 [Kg]
Input & Output
Click to expand

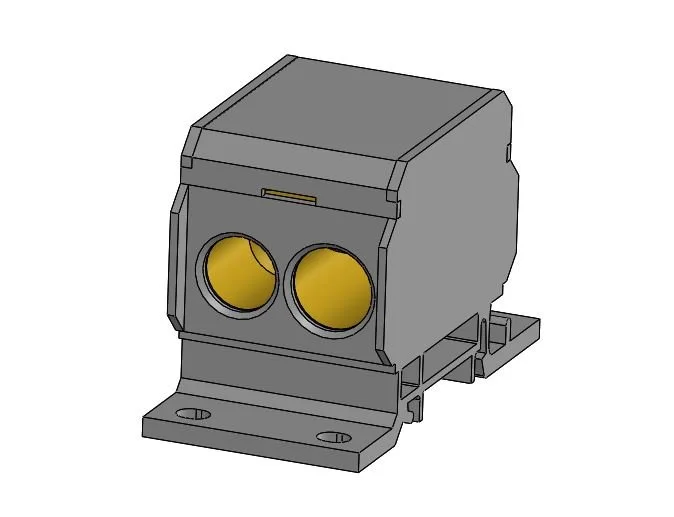

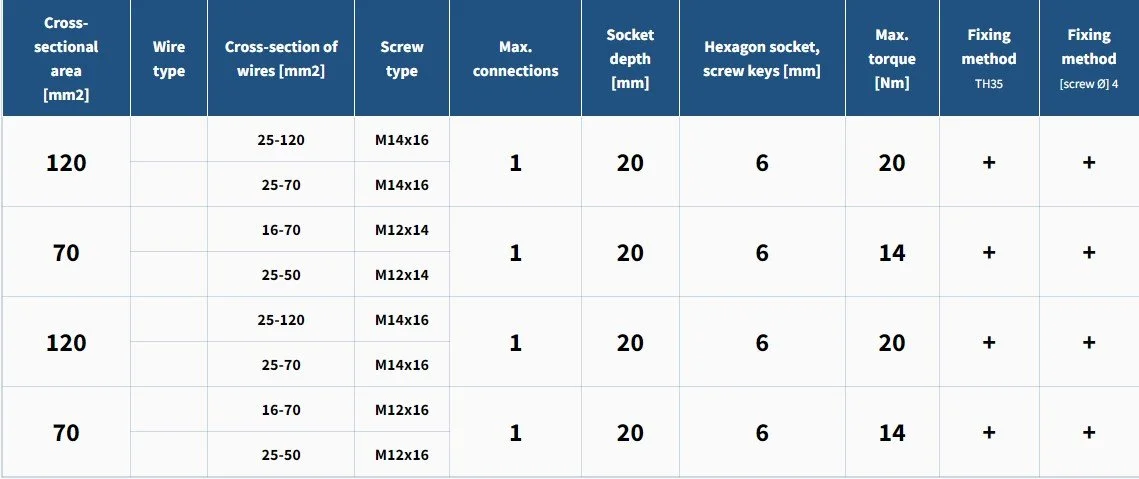

DB-12 AL/CU
Distribution block for use in low voltage switchboards (1kV)
-
150 mm nominal Cross-section
2 wire outputs
-
Current carrying capacity (In) 309 [V]
Rated insulation voltage (Ui) 1000 AC/1500 DC [V]
Rated impulse withstand voltage (Uimp) 6 [kV]
-
tin-plated aluminum
PA6.6 insulator
-
We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.
-
Grey - DB-12/SZ - 1270200070201
Blue - DB-12/N - 1270200070201
Yellow + green - DB-12/ZZ - 1270200070201
-
Packed by 5 - 1,01 [Kg]
Packed by 100 - 20,22 [Kg]
Input & Output
Click to expand

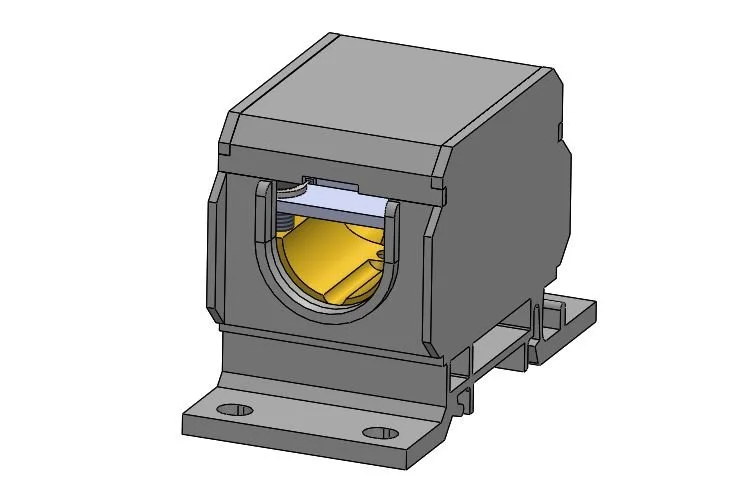

DB-13 AL/CU
Distribution block for use in low voltage switchboards (1kV)
-
120 mm nominal Cross-section
2 wire outputs
-
Current carrying capacity (In) 269 [V]
Rated insulation voltage (Ui) 1000 AC/1500 DC [V]
Rated impulse withstand voltage (Uimp) 6 [kV]
-
tin-plated brass
PA6.6 insulator
-
We are the manufacturer with high knowledge of our product. Both technicals and prices are suited individually. Quote your demand below.
-
Grey - DB-12/SZ - 1270200070201
Blue - DB-12/N - 1270200070201
Yellow + green - DB-12/ZZ - 1270200070201
-
Packed by 5 - 1,01 [Kg]
Packed by 100 - 20,22 [Kg]
Input & Output
Click to expand
