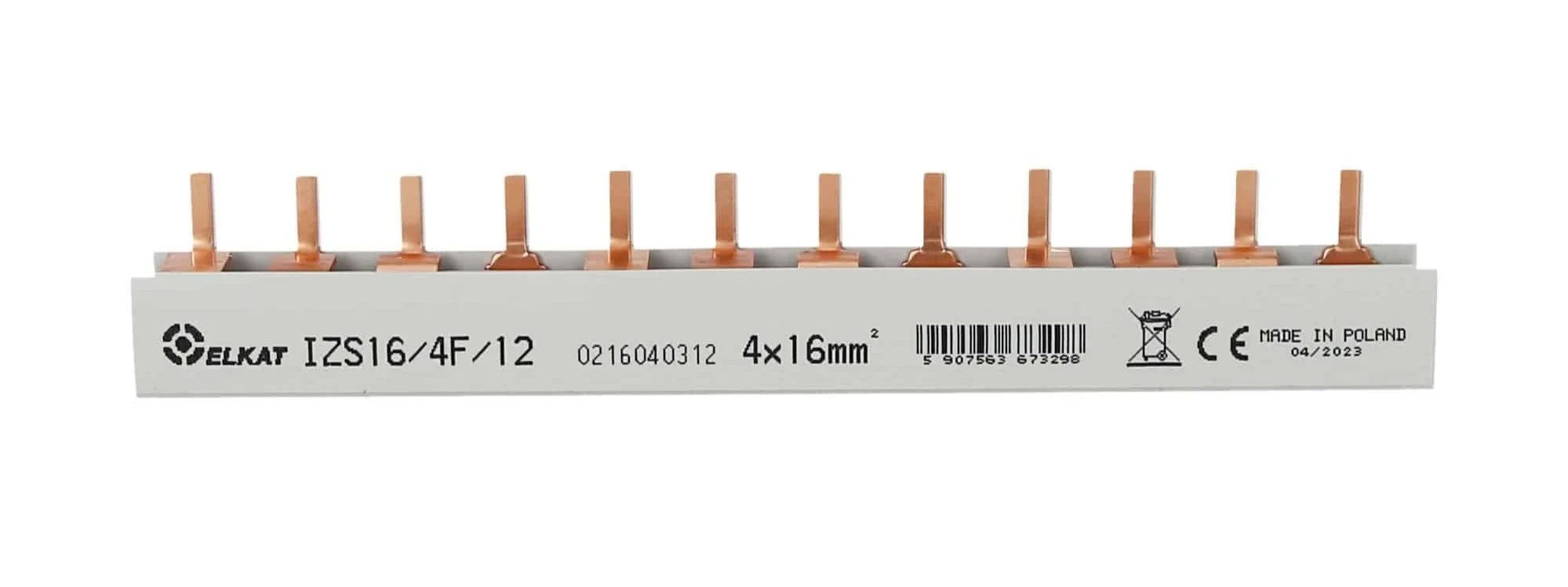

4-pole, 16mm2 insulated Busbar, pin style / 4-polen Sammelschiene / Barra colectora 4-polos
IZS10/4F
TYPE TYP TIPO
Ui
Rated insulation voltage / Bemessungsisolationsspannung / Tensión nomianal de aislamiento
0216040108
500 V
Ie
Nominal voltage / Bemessungsspannung / Tensión nominal de conexión
Max. current / max.Schienstrom / Capacidad de carga de corriente
100 A
Uimp
Surge voltage / Bemessungsstosspannung / Tensión nominal de choque tolerada
Standard Variants
4 kV
Material of insulation / Werkstoff für Insolierung / Material de aislamiento
PVC-U
Material of conductor / elektrisches Leitermaterial / Material de conductor
CATALOGUE NUMBER KATALOGNUMMER NÚMERO DE CATÁLOGO
PACKAGING / VERPACKUNG / EMBALAJE
single package packungseinheit embalaje individu [pcs]/[Kg]
10/1,05
240/415 V
Cu-ETP
collective packaging / sammelverpackung / embalaje colectivo [pcs]/[kg]
120/6,30
IZS10/4F/8
CROSS-SECTION QUERSCHNITT SECCIÓN
16mm2
MODULE DIMENSION MASS MODULE DIMENSIONES DEL MÓDULO
18mm
LENGTH* LÄNGE LONGITUD*
145mm
Technical Data / Technische daten / Datos tecnicos
Ue
Elkat Name
Description

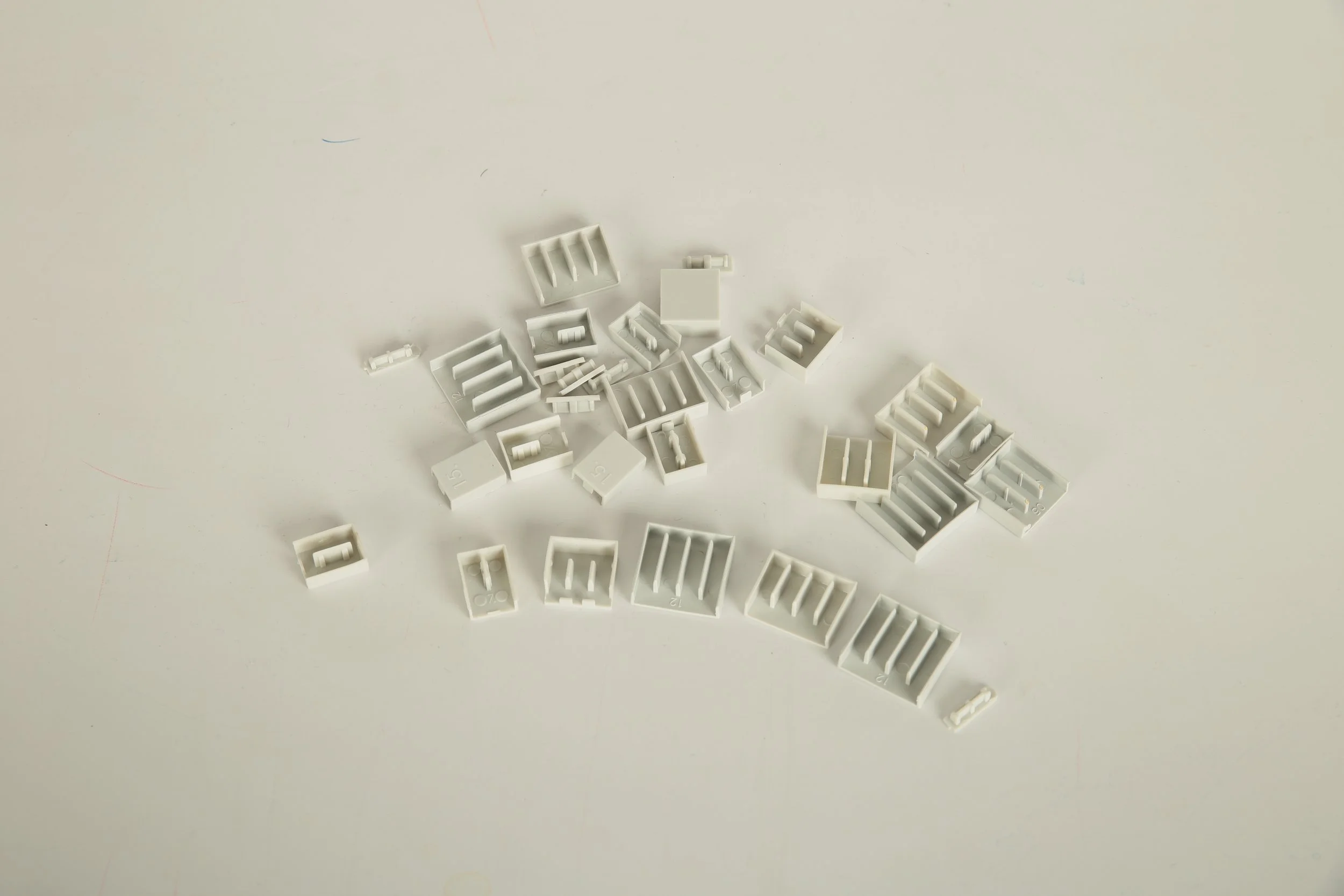

Z-10/1F endcap
Z-10/1F/L endcap
Z-10/2F endcap
Z-10/3F endcap
Z-10/4F endcap
Z-16/1F endcap
Z-16/1F/L endcap
Z-16/2F endcap
Z-16/3F endcap
Z-16/4F endcap
Z-12/1F
Z-12/3F endcap
Z-12/3F/N
ZS-10/1F endcap
ZS-10/1F/L endcap
ZS-10/2F endcap
ZS-10/3F endcap
ZS-16/1F endcap
ZS-16/1F/L endcap
ZS-16/2F endcap
ZS-16/3F endcap
ZS-16/4F endcap
Style
endcap for single phase, fork style, 10mm2 busbar
endcap for 1 phase, bent 90°, fork style, 10mm2 busbar
endcap for 2 phase, fork style, 10mm2 busbar
endcap for 3 phase, fork style, 10mm2 busbar
endcap for 4 pole, fork style, 10mm2 busbar
endcap for single phase, fork style, 16mm2 busbar
endcap for single phase, bent 90°, fork style, 16mm2 busbar
endcap for 2 phase, fork style, 16mm2 busbar
endcap for 3 phase, fork style, 16mm2 busbar
endcap for 4 pole, fork style, 16mm2 busbar
endcap for single phase, fork style, 12mm2 busbar
endcap for 3 phase, fork style, 12mm2 busbar
endcap for 3phase, fork style, 12mm2 busbar in low profile
endcap for single phase, pin style, 10mm2 busbar
endcap for single phase, bent 90°, pin style, 10mm2 busbar
endcap for 2 phase, pin style, 10mm2 busbar
endcap for 3 phase, pin style, 10mm2 busbar
endcap for single, pin style, 16mm2 busbar
endcap for single phase, bent 90°, pin style, 16mm2 busbar
endcap for 2 phase, pin style, 16mm2 busbar
endcap for 3 phase, pin style, 16mm2 busbar
endcap for 4 pole, pin style, 16mm2 busbar
fork style
fork style
fork style
fork style
fork style
fork style
fork style
fork style
fork style
fork style
fork style
fork style
fork style
pin style
pin style
pin style
pin style
pin style
pin style
pin style
pin style
pin style
Cross-section
10mm2
10mm2
10mm2
10mm2
10mm2
16mm2
16mm2
16mm2
16mm2
16mm2
12mm2
12mm2
12mm2
10mm2
10mm2
10mm2
10mm2
16mm2
16mm2
16mm2
16mm2
16mm2
Poles
1
1
2
3
4
1
1
2
3
4
1
3
3
1
1
2
3
1
1
2
3
4
Compatible Busbar
IZ10/1F
IZ10/1F/L
IZ10/2F
iz10/3F
IZ10/4F
IZ16/1F
IZ16/1F/L
IZ16/2F
IZ16/3F
IZ16/4F
Z-12/1F
IZ12/3F
Z-12/3F/N
IZS10/1F
IZS10/1F/L
IZS10/2F
IZS10/3F
IZS16/1F
IZS16/1F/L
IZS16/2F
IZS16/3F
IZS16/4F
We are a visionary company and we have a long history of transforming switchgears apparatus by creating innovative and universal solutions. Here will you find the range of our insulated busbars, distribution blocks and connectors. All of the presented products are designed and produced in-house by our team.
Why Elkat™ Products ?
Our products are not only functional, but also safe, elegant and made with care for the planet. They provide energy to the devices that power your home, business and more. With Elkat™ components, you can experience a futuristic, thoughtful and transparent assembly of electrical devices so important to our lives.
The Green Manufacturer
Solar Power
We have significantly increased the internal reuse of waste to more than 10 tons a year in 2023. in 2024, we are approved to recycle 99,7% of our production waste. What we cannot reuse ourselves, we sell or donate for recycling purposes. This way, our entire manufacturing site has a minimal environmental impact, comparable to a basic household.
Recycling
Thanks to the newly designed production hall and solar panel roofs, we have achieved significant reductions in the emissions of harmful substances and pollutants. For instance, we have lowered our CO2 emissions by 24,06 tons CO2/year (2022-2023).
Cutting emissions
Our latest investments make sure we operate at the highest level of sustainability and elevate our environmental approach. Being ready for the 2030 EU plans, we deeply work on implying green energy, production and waste management. Becoming the green choice for power distribution.
How to cut Busbars
wie man Phasenschienen schneidet / cómo cortar barras colectoras
1. Disassembly the rail as shown on the picture /
Demontieren Sie die Schiene so wie in der Abbildung /
Desmonte la barra tal como se muestra en el dibujo
2. Cut the disassembled profile to a certain length, remove the plastic shavings made from cutting /
Schneiden Sie das zerlegte Profil auf eine bestimmte Länge, entfernen Sie die dabei entstandenen
Kunststoffspänen / Corte el perfil desmontado a cierta longitud, retire las virutas de plástico procedentes del proceso de corte
3.Cut the removed copper rails to the desired length using metal shears as shown on the picture. /
Schneiden Sie die entfernten Kupferschienen mit einer Metallschere so wie in der Abbildungauf die gewünschte Länge. /
Corte las barras desmontadas a la longitud deseada con el uso de tijeras para cortar metales, según lo muestra el dibujo.
4. Assembly the rail, replace the caps /
Montieren Sie die Schiene, setzen Sie die Kappen auf /
Monte la barra, ponga los tapones
ATTENTION! / VORSICHT! / ATENCIÓN!
The chips produced in the process of cutting copper rails moving together with the saw blades during the process along the insulation surface reduce the product's electrical parameters. This can lead to a short circuit or electric shock when working under load!
Do not use the switching rails in outdoor switchgears exposed to high humidity and low ambient temperatures! If in doubt, ask your dealer about the technical conditions of product installation.
The busbars are applicable applicable to switchgears inside buildings only
Die Späne, die beim zuschneiden von Kupferschienen entsteht, kann zusammen mit den Sägeblättern während des Zuschneidens entlang der Isolationsoberfläche reiben und so die elektrischen Parameter des Produkts reduzieren. Dies kann bei der Arbeit unter Strom zu einem Kurzschluss oder elektrischen Schlag führen!
Verwenden Sie die Schaltschienen nicht in Freiluftschaltanlagen, wo się der hohen Luftfeuchtigkeit und den niedrigen Umgebungstemperaturen ausgesetzt sind! Fragen Sie im Zweifelsfall Ihren Händler nach den technischen Bedingungen der Produktinstallation.
Las virutas de plástico procedentes del proceso de corte de barras de cobre que se mueven junto con las hojas de sierra sobre la superficie del aislamiento, reducen los parámetros eléctricos del producto. ¡Esto puede causar un cortocircuito o una descarga eléctrica cuando se trabaja bajo carga!
Las barras colectoras no deben usarse en cuadros de distribución externos expuestos a alta humedad y bajas temperaturas ambientales! Si tiene dudas, pregunte al vendedor por las condiciones técnicas del montaje del producto.
The Style +
IZS - PIN Style
Technical Data and our product names
There are above 500 possible item configurations in the Elkat’s portfolio. We want you to navigate through them with Ease. That’s why we have our code names in use, let’s review them.
IZ - FORK Style
IZM - Fork Style (shorter module)
/
cross-section
Number of Phases
10 - 10mm2
12 - 12mm2
16 - 16mm2
The typical Elkat Name :
IZ 10 / 2F / 54 / D
/
modules (length)
1F - Single phase
2F - two phases
1-60 (customizable)
3F - three phases
4F - four poles
Examples
/
Special atributes
L - 90° bent
N - low profile
C - enclosed insulator (endcap built-in)
V - bigger teeth + 27mm modules
STV - wider modules (27mm)
BL - Blue insulator
D - Insulator divided by phase
H - empty module space
IZ10/1F/54/L - Fork style, 10mm2, single phase, 54modules length, bent 90°
IZS16/3F/57 - Pin style, 16mm2, three phases, 57 modules length
IZS10/2F/56/BL - Pin style, 10mm2, two phases, 56 modules length, Blue insulator
1.
The Catalogue Contents
Here will you find the representation of the Elkat team’s work - The Elkat product Portfolio.
To help you navigate through the pages, all of the products are divided into described categories,
2.
2.
2.
1.1
1.2
1.3
2.2
…
2.2
2.3
…
These include :
Busbars
Fork style Busbars
Fork style, single phase Busbars
Fork Style, 10mm2, single pole busbar.
Fork Style, 10mm2, single pole busbar, Bent 90°
Fork Style, 10mm2, single pole busbar, Blue
…
Fork style, single phase Busbars
2.1
2.2
2.3
…
2.1
2.3
Fork Style, 10mm2, single pole busbar.
Fork Style, 10mm2, single pole busbar, Bent 90°
Fork Style, 10mm2, single pole busbar, Blue
Fork style, three phase Busbars
2.1
Fork Style, 10mm2, single pole busbar.
Fork Style, 10mm2, single pole busbar, Bent 90°
Fork Style, 10mm2, single pole busbar, Blue
Fork style, four pole Busbars
Fork Style, 10mm2, single pole busbar.
Fork Style, 10mm2, single pole busbar, Bent 90°
Fork Style, 10mm2, single pole busbar, Blue
Statement of Origin
As The Elkat company, we hereby declare that we are the exclusive creator and manufacturer of our products; which are the result of the innovation and creativity of our team. Our activities cover the entire product life-cycle, among many more, include the following.
Concept.
Project and design.
Preparation of tools.
Design of the production plant.
All documentation.
The process of implementation into production.
Quality control.
Distribution.
Service.
Warranty execution.
Introduction of solutions in the field of recycling and renewable energy.
The entire process takes place in our production plant at: Chrzanów Duży 1G, 05-825 Grodzisk Mazowiecki, Polska and is compliant with the standards 2014/35/EU, PN-EN 60947-1:2010 + A1:2011+A2:2014, PN-EN 60947-7-1: 2012.
Sincerely, The Elkat Team
According to the norm of : PN-EN 6095-11; L94
Our products use universal and normative cross-sections in [mm2], that match the nominal amperage [A] of the product.
10mm2 - 63A
12mm2 - 80A
16mm2- 100A
According to the European norm of : PN-EN 60068-1/2:2009; PN-EN 600682-30:2008
Our products have a set work temperature of -20°C to 70°C and are designed to be mounted in-house
According to the European norms PN-EN 6095-11; L94 and to Restrictions of Hazardous Substances - 2002/95/EC - RoHS - Our products use materials as follows :
Copper (Cu) - CU-ETP 99,99% Copper in the standard of EN CW 004A
PC ABS - VO Class - RALL7035 (grey) colour
PVC - VO Class - RALL7035 (grey) colour
